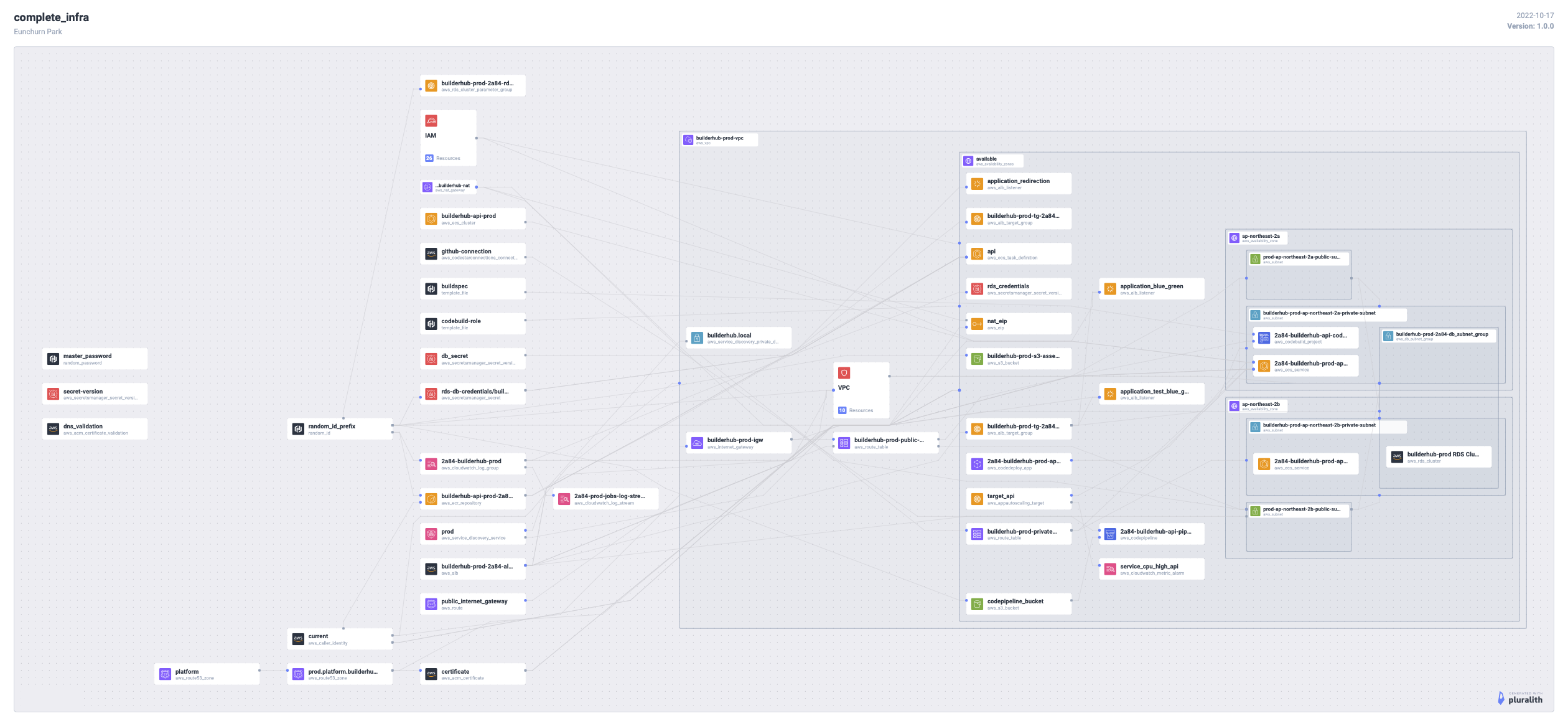

완성된 인프라
인프라 구성도를 보면 좀 복잡해 보이겠지만, 실제로는 단순한 ECS 서비스 하나를 Fargate로 띄우는 것이 목적이다.
미션이 복잡해서 이런 복잡한 구성도가 나오게 되었는데 정리하면,
- ECS Fargate 서비스가 오토 스케일링이 가능해야 하며 서비스는 VPC Private 서브넷에 연결되어 컨테이너가 돌아가야 한다.
- RDS는 Serverless 형태로 Aurora PostgreSQL을 띄우고 VPC Private subnet에서 구동되어야 한다.
- ECS Fargate 서비스는 AWS CodePipeline을 통해 CodeBuild와 CodeDeploy로 배포가 되어야 하는데 CodeBuild에서는 RDS에 접근 가능해야 하며 Prisma Migration을 수행해야 한다. 그리고 Apollo Rover를 통해 Apollo Studio로 스키마를 전송해야한다.
- CodeDeploy는 Blue-Green 배포 형태로 배포가 되어야 하며, Blue와 Green 타겟 그룹은 443포트를 사용한다.
- Application LoadBalancer는 SSL인증서를 발급받아야 하는데 Route53에 배포 스테이지(dev, staged, prod) 워크스페이스에 따라 특정 도메인에 연결한다.
- SSL인증서 Validation을 수행하여, Blue 타겟과 Green 타겟에 ACM 인증서를 모두 연결한다.
- 보안그룹은 ECS에서 RDS는 허용해야하며, ALB 보안그룹은 443포트를 허용한다.
- RDS는 서울리전에서 사용가능한 Serverless를 사용하며, 데이터는 KMS키로 보안을 유지한다. 그리고 RDS의 credential은 SecretManager에 저장하며, Prisma에서 사용할 수 있는 환경변수로 변경하여 SSM Parameter에 저장한다.
- 로컬 환경변수들을 SSM Parameter를 저장하고, 이를 ECS Fargate 서비스에서 사용할 수 있는 Secret 형태로 환경변수를 제공한다.
- CodeBuild는 렌더링되어 제공되어지는
buildspec.yml을 사용하며,postBuild에서 CodeDeploy를 위한appspec.yaml과taskdef.json그리고 이미지 메타정보를 저장한다.
Terraform 모듈을 사용하여 구성하였다. 여기서 코드가 너무 길어서 각 모듈에 대한 코드는 닫아놓았다.
네트워크: ./modules/networks
네트워크는 VPC를 만들고, Subnets과 Route를 만든다. 그리고 Internet Gateway와 NAT를 만들어서 각 서브넷 그룹에 연결한다. 이후 이 VPC 자원을 사용하기 위해 생성된 결과를 출력한다.
- 변수:
variables.tf
variables
variables.tf
variable "application_name" {
description = "Application name"
}
variable "vpc_cidr" {
description = "The CIDR block of the vpc"
}
variable "public_subnets_cidr" {
type = list(any)
description = "The CIDR block for the public subnet"
}
variable "private_subnets_cidr" {
type = list(any)
description = "The CIDR block for the private subnet"
}
variable "region" {
description = "The region to launch the bastion host"
}
variable "availability_zones" {
type = list(any)
description = "The az that the resources will be launched"
}
variable "namespace_name" {
description = "private namespace name"
}
- 출력:
outputs.tf
outputs
outputs.tf
output "vpc_id" {
value = aws_vpc.vpc.id
}
output "public_subnets_id" {
value = ["${aws_subnet.public_subnet.*.id}"]
}
output "private_subnets_id" {
value = ["${aws_subnet.private_subnet.*.id}"]
}
output "public_subnet_1" {
value = aws_subnet.public_subnet.0.id
}
output "public_subnet_2" {
value = aws_subnet.public_subnet.1.id
}
output "private_subnet_1" {
value = aws_subnet.private_subnet.0.id
}
output "private_subnet_2" {
value = aws_subnet.private_subnet.1.id
}
output "default_sg_id" {
value = aws_security_group.default.id
}
output "security_groups_ids" {
value = ["${aws_security_group.default.id}"]
}
output "public_route_table" {
value = aws_route_table.public.id
}
main.tf
main
main.tf
# VPC
resource "aws_vpc" "vpc" {
cidr_block = var.vpc_cidr
enable_dns_hostnames = true
enable_dns_support = true
tags = {
Name = "${var.application_name}-${terraform.workspace}-vpc"
Environment = "${terraform.workspace}"
}
}
# Subnets
## Internet gateway for the public subnet
resource "aws_internet_gateway" "ig" {
vpc_id = aws_vpc.vpc.id
tags = {
Name = "${var.application_name}-${terraform.workspace}-igw"
Environment = "${terraform.workspace}"
}
}
# Elastic IP for NAT
resource "aws_eip" "nat_eip" {
vpc = true
depends_on = [aws_internet_gateway.ig]
}
# NAT
resource "aws_nat_gateway" "nat" {
allocation_id = aws_eip.nat_eip.id
subnet_id = element(aws_subnet.public_subnet.*.id, 0)
depends_on = [aws_internet_gateway.ig]
tags = {
Name = "${var.application_name}-nat"
Environment = "${terraform.workspace}"
}
}
# Public subnet
resource "aws_subnet" "public_subnet" {
vpc_id = aws_vpc.vpc.id
count = length(var.public_subnets_cidr)
cidr_block = element(var.public_subnets_cidr, count.index)
availability_zone = element(var.availability_zones, count.index)
map_public_ip_on_launch = true
tags = {
Name = "${terraform.workspace}-${element(var.availability_zones, count.index)}-public-subnet"
Environment = "${terraform.workspace}"
}
}
# Private subnet
resource "aws_subnet" "private_subnet" {
vpc_id = aws_vpc.vpc.id
count = length(var.private_subnets_cidr)
cidr_block = element(var.private_subnets_cidr, count.index)
availability_zone = element(var.availability_zones, count.index)
map_public_ip_on_launch = false
tags = {
Name = "${var.application_name}-${terraform.workspace}-${element(var.availability_zones, count.index)}-private-subnet"
Environment = "${terraform.workspace}"
}
}
# Routing table for private subnet
resource "aws_route_table" "private" {
vpc_id = aws_vpc.vpc.id
route {
cidr_block = "0.0.0.0/0"
nat_gateway_id = aws_nat_gateway.nat.id
}
tags = {
Name = "${var.application_name}-${terraform.workspace}-private-route-table"
Environment = "${terraform.workspace}"
}
}
# Routing table for public subnet
resource "aws_route_table" "public" {
vpc_id = aws_vpc.vpc.id
route {
cidr_block = "0.0.0.0/0"
gateway_id = aws_internet_gateway.ig.id
}
tags = {
Name = "${var.application_name}-${terraform.workspace}-public-route-table"
Environment = "${terraform.workspace}"
}
depends_on = [
aws_internet_gateway.ig
]
}
resource "aws_route" "public_internet_gateway" {
route_table_id = aws_route_table.public.id
destination_cidr_block = "0.0.0.0/0"
gateway_id = aws_internet_gateway.ig.id
}
# resource "aws_route" "private_nat_gateway" {
# route_table_id = aws_route_table.private.id
# destination_cidr_block = "0.0.0.0/0"
# nat_gateway_id = aws_nat_gateway.nat.id
# }
# Route table associations
resource "aws_route_table_association" "public" {
count = length(var.public_subnets_cidr)
subnet_id = element(aws_subnet.public_subnet.*.id, count.index)
route_table_id = aws_route_table.public.id
}
resource "aws_route_table_association" "private" {
count = length(var.private_subnets_cidr)
subnet_id = element(aws_subnet.private_subnet.*.id, count.index)
route_table_id = aws_route_table.private.id
}
# VPC's Default Security Group
resource "aws_security_group" "default" {
name = "${terraform.workspace}-default-sg"
description = "Default security group to allow inbound/outbound from the VPC"
vpc_id = aws_vpc.vpc.id
depends_on = [aws_vpc.vpc]
ingress {
from_port = "0"
to_port = "0"
protocol = "-1"
self = true
}
egress {
from_port = "0"
to_port = "0"
protocol = "-1"
self = "true"
}
tags = {
Environment = "${terraform.workspace}"
}
}
resource "aws_default_network_acl" "default" {
default_network_acl_id = aws_vpc.vpc.default_network_acl_id
ingress {
protocol = -1
rule_no = 100
action = "allow"
cidr_block = "0.0.0.0/0"
from_port = 0
to_port = 0
}
egress {
protocol = -1
rule_no = 100
action = "allow"
cidr_block = "0.0.0.0/0"
from_port = 0
to_port = 0
}
lifecycle {
ignore_changes = [subnet_ids]
}
tags = {
Name = join("_", ["${var.application_name}-${terraform.workspace}-vpc", "default_nacl"])
}
}
SSM System Manager Parameter: ./modules/ssm
ECS Fargate 서비스에서 사용할 Secret 환경변수 설정을 위해 SSM Parameter 설정을 한다. terraform.tfvars에 환경변수를 담고 셋팅하게 된다. 서비스는 Apollo Studio 사용을 위한 APOLLO_KEY와 APOLLO_GRAPH_REF 그리고 S3 버킷 사용을 위한 S3_ACCESS_KEY_ID와 S3_ACCESS_SECRET_ID를 담았는데 S3_ACCESS_KEY_ID는 보안을 유지해야할 정도가 낮기 때문에 ECS 일반 환경변수로 설정해도 무방하다. 그리고 결제 시스템 연동을 위한 아임포트키 IAMPORT_KEY와 IAMPORT_SECRET_KEY를 설정한다. 마지막으로 ECS 서비스에서 여러 시크릿키 발급을 위한 API_SECRET도 설정한다.
- 변수:
variables.tf
variables
variables.tf
variable "application_name" {
description = "Application name"
}
variable "random_id_prefix" {
description = "random prefix"
}
variable "rds_depend_on" {
description = "RDS depend on"
}
variable "APOLLO_KEY" {
description = "Apollo secret key of Apollo Studio for API container"
type = string
sensitive = true
}
variable "APOLLO_GRAPH_REF" {
description = "Apollo Graph Ref value of Apollo Studio for API container"
type = string
sensitive = false
}
variable "S3_ACCESS_KEY_ID" {
description = "AWS S3 Access Key ID"
type = string
sensitive = true
}
variable "S3_ACCESS_SECRET_ID" {
description = "AWS S3 Access Secret ID"
type = string
sensitive = true
}
variable "IAMPORT_KEY" {
description = "IAMPORT Access Key"
type = string
sensitive = true
}
variable "IAMPORT_SECRET_KEY" {
description = "IAMPORT Access Secret Key"
type = string
sensitive = true
}
variable "API_SECRET" {
description = "API Secret Key"
type = string
sensitive = true
}
- 출력:
outputs.tf
outputs
outputs.tf
output "DATABASE_URL" {
value = aws_ssm_parameter.DATABASE_URL.value
}
output "APOLLO_KEY" {
description = "Apollo secret key of Apollo Studio for API container"
value = aws_ssm_parameter.APOLLO_KEY.value
}
output "APOLLO_GRAPH_REF" {
description = "Apollo Graph Ref value of Apollo Studio for API container"
value = aws_ssm_parameter.APOLLO_GRAPH_REF.value
}
output "S3_ACCESS_KEY_ID" {
description = "AWS S3 Access Key ID"
value = aws_ssm_parameter.S3_ACCESS_KEY_ID.value
}
output "S3_ACCESS_SECRET_ID" {
description = "AWS S3 Access Secret ID"
value = aws_ssm_parameter.S3_ACCESS_SECRET_ID.value
}
output "IAMPORT_KEY" {
description = "IAMPORT Access Key"
value = aws_ssm_parameter.IAMPORT_KEY.value
}
output "IAMPORT_SECRET_KEY" {
description = "IAMPORT Access Secret Key"
value = aws_ssm_parameter.IAMPORT_SECRET_KEY.value
}
output "API_SECRET" {
description = "API Secret Key"
value = aws_ssm_parameter.API_SECRET.value
}
- 메인:
main.tf
SSM Parameter중 Prisma가 사용해야할 DATABASE_URL은 SecretManager가 먼저 만들어진 후 직접 값을 저장하도록 설정하였다.
## DB Secrets
data "aws_secretsmanager_secret" "by-name" {
name = "rds-db-credentials/${var.application_name}/${terraform.workspace}/${var.random_id_prefix}"
depends_on = [
var.rds_depend_on
]
}
data "aws_secretsmanager_secret_version" "db_secret" {
secret_id = data.aws_secretsmanager_secret.by-name.id
}
main
main.tf
## DB Secrets
data "aws_secretsmanager_secret" "by-name" {
name = "rds-db-credentials/${var.application_name}/${terraform.workspace}/${var.random_id_prefix}"
depends_on = [
var.rds_depend_on
]
}
data "aws_secretsmanager_secret_version" "db_secret" {
secret_id = data.aws_secretsmanager_secret.by-name.id
}
## Setting SSM Environment value
resource "aws_ssm_parameter" "DATABASE_URL" {
name = "/${var.application_name}/${terraform.workspace}/DATABASE_URL"
description = "DATABASE_URL"
type = "SecureString"
value = "postgresql://${jsondecode(data.aws_secretsmanager_secret_version.db_secret.secret_string)["username"]}:${jsondecode(data.aws_secretsmanager_secret_version.db_secret.secret_string)["password"]}@${jsondecode(data.aws_secretsmanager_secret_version.db_secret.secret_string)["host"]}:${jsondecode(data.aws_secretsmanager_secret_version.db_secret.secret_string)["port"]}/apidb?schema=public"
overwrite = true
}
resource "aws_ssm_parameter" "APOLLO_KEY" {
name = "/${var.application_name}/${terraform.workspace}/APOLLO_KEY"
description = "APOLLO_KEY of Apollo Studio for API Container"
type = "SecureString"
value = var.APOLLO_KEY
}
resource "aws_ssm_parameter" "APOLLO_GRAPH_REF" {
name = "/${var.application_name}/${terraform.workspace}/APOLLO_GRAPH_REF"
description = "Apollo Graph Ref value of Apollo Studio for API container"
type = "SecureString"
value = var.APOLLO_GRAPH_REF
}
resource "aws_ssm_parameter" "S3_ACCESS_KEY_ID" {
name = "/${var.application_name}/${terraform.workspace}/S3_ACCESS_KEY_ID"
description = "AWS S3 Access Key ID"
type = "SecureString"
value = var.S3_ACCESS_KEY_ID
}
resource "aws_ssm_parameter" "S3_ACCESS_SECRET_ID" {
name = "/${var.application_name}/${terraform.workspace}/S3_ACCESS_SECRET_ID"
description = "AWS S3 Access Secret ID"
type = "SecureString"
value = var.S3_ACCESS_SECRET_ID
}
resource "aws_ssm_parameter" "IAMPORT_KEY" {
name = "/${var.application_name}/${terraform.workspace}/IAMPORT_KEY"
description = "IAMPORT Access Key"
type = "SecureString"
value = var.IAMPORT_KEY
}
resource "aws_ssm_parameter" "IAMPORT_SECRET_KEY" {
name = "/${var.application_name}/${terraform.workspace}/IAMPORT_SECRET_KEY"
description = "IAMPORT Access Secret Key"
type = "SecureString"
value = var.IAMPORT_SECRET_KEY
}
resource "aws_ssm_parameter" "API_SECRET" {
name = "/${var.application_name}/${terraform.workspace}/API_SECRET"
description = "API Secret Key"
type = "SecureString"
value = var.API_SECRET
}
RDS ./modules/database
Database는 AWS RDS Aurora Serverless를 사용한다. 이에 맞추어 Parameter Group을 설정하기 위해 지난 tWIL에서 명시한 바와 같이 서울리전에 지원되는 PostgreSQL serverless 정보를 찾아야 한다. 하지만 버전 11.3이 있지만 aurora-postgresql10만 받을 수 있다. 이것은 테스트를 해보니 직접 콘솔에서 11버전으로 변경 후 aurora-postgresql11로 변경하니 문제는 없었다. 이건 언젠간 업데이트 될 것이라 생각한다. Aurora는 안정성이 문제인지 최신버전을 지원이 많이 느린 것 같다.
- 변수:
variables.tf
variables
variables.tf
variable "application_name" {
description = "Application name"
}
variable "random_id_prefix" {
description = "random prefix"
}
variable "subnet_ids" {
type = list(any)
description = "Subnet ids"
}
variable "global_cluster_identifier" {
description = "global cluster identifier"
}
variable "cluster_identifier" {
description = "cluster identifier"
}
variable "replication_source_identifier" {
description = "replication source identifier"
}
variable "source_region" {
description = "source region"
}
variable "engine" {
description = "engine"
}
variable "engine_mode" {
description = "engine mode"
}
variable "database_name" {
description = "database name"
}
variable "master_username" {
description = "master username"
}
variable "vpc_security_group_ids" {
description = "vpc security group ids"
}
variable "db_cluster_parameter_group_name" {
description = "db cluster parameter group name"
}
variable "final_snapshot_identifier" {
description = "final snapshot identifier"
}
variable "backup_retention_period" {
description = "backup retention period"
}
variable "preferred_backup_window" {
description = "preferred backup window"
}
variable "preferred_maintenance_window" {
description = "preferred maintenance window"
}
variable "skip_final_snapshot" {
description = "skip final snapshot"
}
variable "storage_encrypted" {
description = "storage encrypted"
}
variable "apply_immediately" {
description = "apply immediately"
}
variable "iam_database_authentication_enabled" {
description = "iam database authentication enabled"
}
variable "backtrack_window" {
description = "backtrack window"
}
variable "copy_tags_to_snapshot" {
description = "copy tags to snapshot"
}
variable "deletion_protection" {
description = "deletion protection"
}
variable "auto_pause" {
description = "auto pause"
}
variable "max_capacity" {
description = "max capacity"
}
variable "min_capacity" {
description = "min capacity"
}
variable "seconds_until_auto_pause" {
description = "seconds until auto pause"
}
variable "api_server_sg" {
description = "API server security group"
}
variable "vpc_id" {
description = "vpc id"
}
- 출력:
outputs.tf
여기서 만든 DB Security Group은 ECS에 붙일 예정이다.
outputs
outputs.tf
output "aws_rds_cluster_endpoint" {
value = aws_rds_cluster.this.endpoint
}
output "aws_rds_cluster_database_name" {
value = aws_rds_cluster.this.database_name
}
output "aws_rds_cluster_master_username" {
value = aws_rds_cluster.this.master_username
}
output "aws_rds_cluster_credentials" {
value = aws_secretsmanager_secret_version.rds_credentials.secret_string
}
output "aws_rds_access_security_group_ids" {
value = aws_security_group.db_access_sg.id
}
output "aws_rds_db_security_group_ids" {
value = aws_security_group.rdsdb_sg.id
}
- 메인:
main.tf
aws_secretsmanager_secret_version 버전관리는 필요할까 생각했지만, 어쨌든 시크릿메니저로 DB credential을 관리하도록 하였다. 그리고 ECS 서비스의 보안그룹을 RDS에 ingress에 붙여주었는데(문제가 되진 않겠지...) 반대로 ECS에 DB Access Security Group을 붙여주어도 무방할 것 같다.
main
main.tf
# master password
resource "random_password" "master_password" {
length = 16
special = false
}
resource "aws_secretsmanager_secret" "rds_credentials" {
name = "rds-db-credentials/${var.application_name}/${terraform.workspace}/${var.random_id_prefix}"
}
resource "aws_db_subnet_group" "db_subnet_group" {
name = "${var.application_name}-${terraform.workspace}-${var.random_id_prefix}-db_subnet_group"
subnet_ids = flatten(["${var.subnet_ids}"])
tags = {
Name = "${var.application_name}-${terraform.workspace}-${var.random_id_prefix}-db_subnet_group"
}
}
# Security Group for resources that want to access the Database
resource "aws_security_group" "db_access_sg" {
vpc_id = var.vpc_id
name = "${var.application_name}-${terraform.workspace}-db-access-sg"
description = "Allow access to DocumentDB"
tags = {
Name = "${var.application_name}-${terraform.workspace}-db-access-sg"
Environment = "${terraform.workspace}"
}
}
resource "aws_security_group" "rdsdb_sg" {
name = "${var.application_name}-${terraform.workspace}-rdsdb-sg"
description = "${var.application_name}-${terraform.workspace} RDS PostgreSQL aurora serverless Security Group"
vpc_id = var.vpc_id
tags = {
Name = "${var.application_name}-${terraform.workspace}-rdsdb-sg"
Environment = "${terraform.workspace}"
}
# allows traffic from the SG itself
ingress {
from_port = 0
to_port = 0
protocol = "-1"
self = true
}
# allow traffic for TCP 5432
ingress {
from_port = 5432
to_port = 5432
protocol = "tcp"
security_groups = ["${aws_security_group.db_access_sg.id}"]
}
# allow traffic for TCP 5432 from API Container
ingress {
from_port = 5432
to_port = 5432
protocol = "tcp"
security_groups = ["${var.api_server_sg}"]
}
# outbound internet access
egress {
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
}
}
resource "aws_rds_cluster_parameter_group" "default" {
name = "${var.application_name}-${terraform.workspace}-${var.random_id_prefix}-rds-cluster-pg"
/**
* 서울 리전 버전 체크
* aws rds describe-db-engine-versions | jq '.DBEngineVersions[] | select(.SupportedEngineModes != null and .SupportedEngineModes[] == "serverless" and .Engine == "aurora-postgresql")'
* */
family = "aurora-postgresql10"
description = "RDS default cluster parameter group"
}
resource "aws_rds_cluster" "this" {
cluster_identifier = var.cluster_identifier
source_region = var.source_region
engine = var.engine
engine_mode = var.engine_mode
database_name = var.database_name
master_username = var.master_username
master_password = random_password.master_password.result
final_snapshot_identifier = var.final_snapshot_identifier
skip_final_snapshot = var.skip_final_snapshot
backup_retention_period = var.backup_retention_period
preferred_backup_window = var.preferred_backup_window
preferred_maintenance_window = var.preferred_maintenance_window
db_subnet_group_name = aws_db_subnet_group.db_subnet_group.name
vpc_security_group_ids = ["${aws_security_group.rdsdb_sg.id}"]
storage_encrypted = var.storage_encrypted
apply_immediately = var.apply_immediately
db_cluster_parameter_group_name = aws_rds_cluster_parameter_group.default.id
iam_database_authentication_enabled = var.iam_database_authentication_enabled
backtrack_window = var.backtrack_window
copy_tags_to_snapshot = var.copy_tags_to_snapshot
deletion_protection = var.deletion_protection
scaling_configuration {
auto_pause = var.auto_pause
max_capacity = var.max_capacity
min_capacity = var.min_capacity
seconds_until_auto_pause = var.seconds_until_auto_pause
timeout_action = "ForceApplyCapacityChange"
}
tags = {
Name = "${var.application_name}-${terraform.workspace} RDS Cluster"
}
}
# Secret value update https://stackoverflow.com/a/67927860
resource "aws_secretsmanager_secret_version" "rds_credentials" {
secret_id = aws_secretsmanager_secret.rds_credentials.id
secret_string = jsonencode({
"username" : "${aws_rds_cluster.this.master_username}",
"password" : "${random_password.master_password.result}",
"engine" : "${aws_rds_cluster.this.engine}",
"host" : "${aws_rds_cluster.this.endpoint}",
"port" : "${aws_rds_cluster.this.port}",
"dbClusterIdentifier" : "${aws_rds_cluster.this.cluster_identifier}"
})
}
Application LoadBalancer ./modules/api-alb
- 변수:
variables.tf
variables
variables.tf
variable "region" {
description = "AWS Region"
}
variable "application_name" {
description = "Application name"
}
variable "random_id_prefix" {
description = "random id prefix"
}
variable "vpc_id" {
description = "vpc id"
}
variable "public_subnet_ids" {
type = list(any)
description = "Public subnets to use"
}
variable "security_groups_ids" {
type = list(any)
description = "The SGs to use"
}
variable "ecs_security_group" {
description = "ECS Security group"
}
variable "alb_security_group" {
description = "ALB Security group"
}
variable "root_domain" {
description = "Root domain"
type = string
default = "platform.mystack.io"
}
- 출력:
outputs.tf
outputs
outputs.tf
output "aws_target_group_blue" {
value = aws_alb_target_group.alb_target_group_blue
}
output "aws_target_group_green" {
value = aws_alb_target_group.alb_target_group_green
}
output "aws_alb_blue_green" {
value = aws_alb_listener.application_blue_green
}
output "aws_alb_test_blue_green" {
value = aws_alb_listener.application_test_blue_green
}
output "route53" {
value = aws_route53_record.platform_sub
}
- 메인:
main.tf
여기서 우리는 Route53 존과 Route53 레코드를 생성하고 Certificate Manager를 통해 인증서를 발급 받아 validation을 시켜준 이후, ALB 리스너(Blue/Green)에 443포트로 생성하고 인증서를 붙여준다. 그리고 80포트로 들어오는 트래픽은 HTTPS로 redirect 시키도록 설정한다. Target Group은 API가 8000번 포트를 리스닝하기 때문에 동일한 Port를 설정해준다. 이후 CodeDeploy 앱에서 Blue 타겟과 Green 타겟을 붙여주도록 한다.
main
main.tf
# Application Load Balancer
resource "aws_alb" "alb_application" {
name = "${var.application_name}-${terraform.workspace}-${var.random_id_prefix}-alb"
subnets = flatten(["${var.public_subnet_ids}"])
security_groups = flatten(["${var.security_groups_ids}", "${var.ecs_security_group.id}", "${var.alb_security_group.id}"])
tags = {
Name = "${var.application_name}-${terraform.workspace}-${var.random_id_prefix}-alb"
Environment = "${terraform.workspace}"
}
}
resource "aws_alb_listener" "application_blue_green" {
load_balancer_arn = aws_alb.alb_application.arn
port = 443
protocol = "HTTPS"
ssl_policy = "ELBSecurityPolicy-2016-08"
certificate_arn = aws_acm_certificate.certificate.arn
depends_on = [aws_alb_target_group.alb_target_group_blue]
default_action {
target_group_arn = aws_alb_target_group.alb_target_group_blue.arn
type = "forward"
}
}
resource "aws_alb_listener" "application_test_blue_green" {
load_balancer_arn = aws_alb.alb_application.arn
port = 443
protocol = "HTTPS"
ssl_policy = "ELBSecurityPolicy-2016-08"
certificate_arn = aws_acm_certificate.certificate.arn
depends_on = [aws_alb_target_group.alb_target_group_blue]
default_action {
target_group_arn = aws_alb_target_group.alb_target_group_blue.arn
type = "forward"
}
}
resource "aws_alb_listener" "application_redirection" {
load_balancer_arn = aws_alb.alb_application.arn
port = 80
protocol = "HTTP"
default_action {
type = "redirect"
redirect {
port = "443"
protocol = "HTTPS"
status_code = "HTTP_301"
}
}
}
# AWS ALB Target Blue groups/Listener for Blue/Green Deployments
resource "aws_alb_target_group" "alb_target_group_blue" {
name = "${var.application_name}-${terraform.workspace}-tg-${var.random_id_prefix}-blue"
port = 8000
protocol = "HTTP"
vpc_id = var.vpc_id
target_type = "ip"
lifecycle {
create_before_destroy = true
}
health_check {
healthy_threshold = "3"
interval = "30"
protocol = "HTTP"
matcher = "200-399"
timeout = "3"
path = "/.well-known/apollo/server-health"
unhealthy_threshold = "2"
}
tags = {
Environment = "${terraform.workspace}-blue"
}
depends_on = [aws_alb.alb_application]
}
# AWS ALB Target Green groups/Listener for Blue/Green Deployments
resource "aws_alb_target_group" "alb_target_group_green" {
name = "${var.application_name}-${terraform.workspace}-tg-${var.random_id_prefix}-green"
port = 8000
protocol = "HTTP"
vpc_id = var.vpc_id
target_type = "ip"
lifecycle {
create_before_destroy = true
}
health_check {
healthy_threshold = "3"
interval = "30"
protocol = "HTTP"
matcher = "200-399"
timeout = "3"
path = "/.well-known/apollo/server-health"
unhealthy_threshold = "2"
}
tags = {
Environment = "${terraform.workspace}-green"
}
depends_on = [aws_alb.alb_application]
}
# Standard route53 DNS record for "mystack" pointing to an ALB
data "aws_route53_zone" "platform" {
name = var.root_domain
}
resource "aws_route53_zone" "platform_sub" {
name = "${terraform.workspace}.${data.aws_route53_zone.platform.name}"
depends_on = [
data.aws_route53_zone.platform
]
}
# Sub DNS for API
resource "aws_route53_record" "platform_sub-ns" {
zone_id = data.aws_route53_zone.platform.zone_id
name = aws_route53_zone.platform_sub.name
type = "NS"
ttl = "30"
records = aws_route53_zone.platform_sub.name_servers
}
resource "aws_route53_record" "domain_record" {
for_each = {
for dvo in aws_acm_certificate.certificate.domain_validation_options : dvo.domain_name => {
name = dvo.resource_record_name
record = dvo.resource_record_value
type = dvo.resource_record_type
}
}
allow_overwrite = true
name = each.value.name
records = [each.value.record]
ttl = 60
type = each.value.type
zone_id = aws_route53_zone.platform_sub.zone_id
}
# Sub DNS for API
resource "aws_route53_record" "platform_sub" {
zone_id = aws_route53_zone.platform_sub.zone_id
name = "api.${aws_route53_zone.platform_sub.name}"
type = "A"
alias {
name = aws_alb.alb_application.dns_name
zone_id = aws_alb.alb_application.zone_id
evaluate_target_health = false
}
}
resource "aws_acm_certificate" "certificate" {
domain_name = aws_route53_zone.platform_sub.name
subject_alternative_names = ["api.${aws_route53_zone.platform_sub.name}", "*.${aws_route53_zone.platform_sub.name}"]
validation_method = "DNS"
tags = {
Environment = terraform.workspace
}
lifecycle {
create_before_destroy = true
}
}
resource "aws_acm_certificate_validation" "dns_validation" {
certificate_arn = aws_acm_certificate.certificate.arn
validation_record_fqdns = [for record in aws_route53_record.domain_record : record.fqdn]
}
ECS IAM Roles & Policies ./modules/api-iam
IAM은 ECS에서 사용할 AssumeRole과 정책, 그리고 AutoScaling에서 사용할 Role과 정책을 만든다. 출력은 AutoScaling에서 사용할 ecs_execution_role을 출력한다.
- 변수:
variables.tf
variables
variables.tf
variable "region" {
description = "AWS Region"
}
variable "application_name" {
description = "Application name"
}
variable "random_id_prefix" {
description = "random id prefix"
}
- 출력:
outputs.tf
outputs
outputs.tf
output "ecs_execution_role" {
value = aws_iam_role.ecs_execution_role
}
- 메인:
main.tf
main
main.tf
data "aws_iam_policy_document" "ecs_service_role" {
statement {
effect = "Allow"
actions = ["sts:AssumeRole"]
principals {
type = "Service"
identifiers = ["ecs.amazonaws.com"]
}
}
}
resource "aws_iam_role" "ecs_role" {
name = "${var.random_id_prefix}-ecs-role"
assume_role_policy = data.aws_iam_policy_document.ecs_service_role.json
}
data "aws_iam_policy_document" "ecs_service_policy" {
statement {
effect = "Allow"
resources = ["*"]
actions = [
"elasticloadbalancing:Describe*",
"elasticloadbalancing:DeregisterInstancesFromLoadBalancer",
"elasticloadbalancing:RegisterInstancesWithLoadBalancer",
"ec2:Describe*",
"ec2:AuthorizeSecurityGroupIngress"
]
}
}
/* ecs service scheduler role */
resource "aws_iam_role_policy" "ecs_service_role_policy" {
name = "${var.random_id_prefix}-ecs_service_role_policy"
policy = data.aws_iam_policy_document.ecs_service_policy.json
role = aws_iam_role.ecs_role.id
}
/* role that the Amazon ECS container agent and the Docker daemon can assume */
resource "aws_iam_role" "ecs_execution_role" {
name = "${var.random_id_prefix}-ecs_execution_role_policy"
assume_role_policy = file("${path.module}/policies/ecs-task-execution-role.json")
}
resource "aws_iam_role_policy" "ecs_execution_role_policy" {
name = "${var.random_id_prefix}-ecs_execution_role_policy"
policy = file("${path.module}/policies/ecs-execution-role-policy.json")
role = aws_iam_role.ecs_execution_role.id
}
# AutoScaling Role
resource "aws_iam_role" "ecs_autoscale_role" {
name = "${var.random_id_prefix}-ecs_autoscale_role_policy"
assume_role_policy = file("${path.module}/policies/ecs-autoscale-role.json")
}
resource "aws_iam_role_policy" "ecs_autoscale_role_policy" {
name = "${var.random_id_prefix}-ecs_autoscale_role_policy"
policy = file("${path.module}/policies/ecs-autoscale-role-policy.json")
role = aws_iam_role.ecs_autoscale_role.id
}
- ECS Role:
policies/ecs-role.json
ecs-role.json
ecs-role.json
{
"Version": "2008-10-17",
"Statement": [
{
"Action": "sts:AssumeRole",
"Principal": {
"Service": [
"ecs.amazonaws.com",
"ec2.amazonaws.com"
]
},
"Effect": "Allow"
}
]
}
- ECS Service Role
policies/ecs-service-role.json
ecs-service-role.json
ecs-service-role.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"elasticloadbalancing:Describe*",
"elasticloadbalancing:DeregisterInstancesFromLoadBalancer",
"elasticloadbalancing:RegisterInstancesWithLoadBalancer",
"ec2:Describe*",
"ec2:AuthorizeSecurityGroupIngress"
],
"Resource": [
"*"
]
}
]
}
- ECS Task Execution Role:
policies/ecs-task-execution-role.json
ecs-task-execution-role.json
ecs-task-execution-role.json
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "",
"Effect": "Allow",
"Principal": {
"Service": "ecs-tasks.amazonaws.com"
},
"Action": "sts:AssumeRole"
}
]
}
- ECS Execution Role Policy:
policies/ecs-execution-role-policies.json
ecs-execution-role-policies.json
ecs-execution-role-policies.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"ecr:GetAuthorizationToken",
"ecr:BatchCheckLayerAvailability",
"ecr:GetDownloadUrlForLayer",
"ecr:BatchGetImage",
"logs:CreateLogStream",
"logs:PutLogEvents",
"s3:GetObject",
"s3:PutObject",
"s3:ListBucket",
"s3:HeadBucket",
"s3:PutObjectAcl",
"mobiletargeting:*",
"mobiletargeting:CreateApp",
"s3:PutObject",
"logs:CreateLogStream",
"ses:*",
"ecr:BatchGetImage",
"s3:ListBucket",
"cognito-identity:*",
"ecr:GetDownloadUrlForLayer",
"ecr:BatchCheckLayerAvailability",
"ssm:GetParameters",
"ssmmessages:CreateControlChannel",
"ssmmessages:CreateDataChannel",
"ssmmessages:OpenControlChannel",
"ssmmessages:OpenDataChannel"
],
"Resource": "*"
}
]
}
- ECS Autoscale Role:
policies/ecs-autoscale-role.json
ecs-autoscale-role.json
ecs-autoscale-role.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Service": "application-autoscaling.amazonaws.com"
},
"Action": "sts:AssumeRole"
}
]
}
- ECS Autoscale Role Policy:
policies/ecs-autoscale-role-policies.json
ecs-autoscale-role-policies.json
ecs-autoscale-role-policies.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"ecs:DescribeServices",
"ecs:UpdateService"
],
"Resource": [
"*"
]
},
{
"Effect": "Allow",
"Action": [
"cloudwatch:DescribeAlarms"
],
"Resource": [
"*"
]
}
]
}
ECS Security Group ./modules/api-sg
ECS의 서비스 보안그룹과 ALB의 보안그룹을 만든다. ALB에서는 80, 443, 8000포트를 ingress 허용하며, egress는 모든 곳에 허용한다. ECS 보안그룹은 컨테이너 포트를 ingress 허용하고, egress는 모든 곳에 허용한다.
- 변수:
variables.tf
variables.tf
variables.tf
variable "region" {
description = "AWS Region"
}
variable "application_name" {
description = "Application name"
}
variable "random_id_prefix" {
description = "random id prefix"
}
variable "vpc_id" {
description = "vpc id"
}
variable "container_port" {
description = "ECS container port"
}
- 출력:
outputs.tf
outputs.tf
outputs.tf
output "alb_security_group" {
value = aws_security_group.alb_sg
}
output "ecs_security_group" {
value = aws_security_group.ecs_sg
}
- 메인:
main.tf
main.tf
main.tf
# Security group for ALB
resource "aws_security_group" "alb_sg" {
name = "${var.random_id_prefix}-${var.application_name}-${terraform.workspace}-alb-sg"
description = "Application Load Balancer Security Group"
vpc_id = var.vpc_id
ingress = [{
from_port = 80
to_port = 80
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
description = "Allow HTTP Access On Port 80"
ipv6_cidr_blocks = []
prefix_list_ids = []
security_groups = []
self = false
},
{
description = "TLS from VPC"
from_port = 443
to_port = 443
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
ipv6_cidr_blocks = []
prefix_list_ids = []
security_groups = []
self = false
},
{
from_port = 8000
to_port = 8000
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
description = "Allow HTTP Access On Port 8080"
ipv6_cidr_blocks = []
prefix_list_ids = []
security_groups = []
self = false
},
{
from_port = 8
to_port = 0
protocol = "icmp"
cidr_blocks = ["0.0.0.0/0"]
description = "Allow Ping"
ipv6_cidr_blocks = []
prefix_list_ids = []
security_groups = []
self = false
}]
egress {
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
}
tags = {
Name = "${var.random_id_prefix}-${var.application_name}-${terraform.workspace}-alb-sg"
}
}
# ECS Security Group
resource "aws_security_group" "ecs_sg" {
name = "${var.random_id_prefix}-${var.application_name}-${terraform.workspace}-ecs-sg"
vpc_id = var.vpc_id
description = "ECS Task Security Group Allow egress from container"
ingress {
from_port = var.container_port
to_port = var.container_port
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
security_groups = [aws_security_group.alb_sg.id]
}
egress {
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
}
tags = {
Name = "${var.random_id_prefix}-${var.application_name}-${terraform.workspace}-ecs-sg"
Environment = "${terraform.workspace}"
}
}
ECS AutoScaling: ./modules/api-autoscaling
- 변수:
variables.tf
variables.tf
variables.tf
variable "region" {
description = "AWS Region"
}
variable "application_name" {
description = "Application name"
}
variable "random_id_prefix" {
description = "random id prefix"
}
variable "ecs_autoscale_role" {
description = "ECS AutoScale Role"
}
variable "ecs_cluster_name" {
description = "ECS Cluster Name"
}
variable "ecs_service_name" {
description = "ECS Service Name"
}
- 메인:
main.tf
main.tf
main.tf
## Auto Scaling for ECS
resource "aws_appautoscaling_target" "target_api" {
service_namespace = "ecs"
resource_id = "service/${var.ecs_cluster_name}/${var.ecs_service_name}"
scalable_dimension = "ecs:service:DesiredCount"
role_arn = var.ecs_autoscale_role.arn
min_capacity = 1
max_capacity = 4
}
resource "aws_appautoscaling_policy" "up_api" {
name = "${var.random_id_prefix}-${terraform.workspace}_scale_up_api"
service_namespace = "ecs"
resource_id = "service/${var.ecs_cluster_name}/${var.ecs_service_name}"
scalable_dimension = "ecs:service:DesiredCount"
step_scaling_policy_configuration {
adjustment_type = "ChangeInCapacity"
cooldown = 60
metric_aggregation_type = "Maximum"
step_adjustment {
metric_interval_lower_bound = 0
scaling_adjustment = 1
}
}
depends_on = [aws_appautoscaling_target.target_api]
}
resource "aws_appautoscaling_policy" "down_api" {
name = "${var.random_id_prefix}-${terraform.workspace}_scale_down_api"
service_namespace = "ecs"
resource_id = "service/${var.ecs_cluster_name}/${var.ecs_service_name}"
scalable_dimension = "ecs:service:DesiredCount"
step_scaling_policy_configuration {
adjustment_type = "ChangeInCapacity"
cooldown = 60
metric_aggregation_type = "Maximum"
step_adjustment {
metric_interval_lower_bound = 0
scaling_adjustment = -1
}
}
depends_on = [aws_appautoscaling_target.target_api]
}
resource "aws_appautoscaling_policy" "cpu_tracking" {
name = "${var.random_id_prefix}-${terraform.workspace}_cpu_tracking"
policy_type = "TargetTrackingScaling"
service_namespace = "ecs"
resource_id = "service/${var.ecs_cluster_name}/${var.ecs_service_name}"
scalable_dimension = "ecs:service:DesiredCount"
target_tracking_scaling_policy_configuration {
predefined_metric_specification {
predefined_metric_type = "ECSServiceAverageCPUUtilization"
}
target_value = 99
scale_in_cooldown = 300
scale_out_cooldown = 60
}
depends_on = [aws_appautoscaling_target.target_api]
}
## metric used for auto scale
resource "aws_cloudwatch_metric_alarm" "service_cpu_high_api" {
alarm_name = "${var.random_id_prefix}-${var.application_name}-${terraform.workspace}_application_cpu_utilization_high_api"
comparison_operator = "GreaterThanOrEqualToThreshold"
evaluation_periods = "2"
metric_name = "CPUUtilization"
namespace = "AWS/ECS"
period = "60"
statistic = "Maximum"
threshold = "85"
dimensions = {
ClusterName = "${var.ecs_cluster_name}"
ServiceName = "${var.ecs_service_name}"
}
alarm_actions = ["${aws_appautoscaling_policy.up_api.arn}"]
ok_actions = ["${aws_appautoscaling_policy.down_api.arn}"]
}
ECS Cluster & Service
- 변수:
variables.tf
variables.tf
variables.tf
variable "region" {
description = "AWS Region"
}
variable "application_name" {
description = "Application name"
}
variable "vpc_id" {
description = "vpc id"
}
variable "random_id_prefix" {
description = "random id prefix"
}
variable "ecr_api_repository_name" {
description = "The name of the repisitory"
}
variable "aws_target_group_blue" {
description = "ECS Target Group Blue"
}
variable "aws_target_group_green" {
description = "ECS Target Group Green"
}
variable "ecs_execution_role" {
description = "ECS Execute Role"
}
variable "security_groups_ids" {
type = list(any)
description = "The SGs to use"
}
variable "ecs_security_group" {
description = "ECS Security Group"
}
variable "private_subnets_ids" {
type = list(any)
description = "Private subnets ids"
}
variable "container_port" {
description = "ECS container port"
}
variable "scan_on_push" {
description = "ECR scan on push"
}
variable "api_container_memory" {
description = "API container memory"
}
variable "DATABASE_URL" {
description = "DATABASE_URL for Prisma"
type = string
sensitive = true
}
variable "APOLLO_KEY" {
description = "Apollo secret key of Apollo Studio for API container"
type = string
sensitive = true
}
variable "APOLLO_GRAPH_REF" {
description = "Apollo Graph Ref value of Apollo Studio for API container"
type = string
sensitive = false
}
variable "S3_ACCESS_KEY_ID" {
description = "AWS S3 Access Key ID"
type = string
sensitive = true
}
variable "S3_ACCESS_SECRET_ID" {
description = "AWS S3 Access Secret ID"
type = string
sensitive = true
}
variable "IAMPORT_KEY" {
description = "IAMPORT Access Key"
type = string
sensitive = true
}
variable "IAMPORT_SECRET_KEY" {
description = "IAMPORT Access Secret Key"
type = string
sensitive = true
}
variable "API_SECRET" {
description = "API Secret Key"
type = string
sensitive = true
}
variable "ssm_depends_on" {
type = any
default = []
}
- 출력:
outputs.tf
outputs.tf
outputs.tf
output "api_repository_url" {
value = aws_ecr_repository.api.repository_url
}
output "api_repository_name" {
value = aws_ecr_repository.api.name
}
output "cluster_name" {
value = aws_ecs_cluster.cluster.name
}
output "api_service_name" {
value = aws_ecs_service.api.name
}
output "ecs_api_task_defination_family" {
value = aws_ecs_task_definition.api.family
}
output "api_ecs_cluster_id" {
value = aws_ecs_cluster.cluster
}
output "api_ecs_task_id" {
value = data.aws_ecs_task_definition.api
}
output "api_ecs_service" {
value = aws_ecs_service.api
}
- 메인:
main.tf
ECS의 Service에서 삽질을 많이했다. 즉, CODE_DEPLOY를 Deployment Controller로 사용할 때 다른 인프라를 수정할 때도 배포 오류가 발생한다. ECS Service를 CodeDeploy로 배포한다고 정의했기 때문에 직접 인프라 수정이 안되는 것이다. 참고: Blue Green Deployments with ECS #6802
lifecycle {
ignore_changes = [
desired_count,
load_balancer,
network_configuration,
task_definition
]
}
변경점을 무시하라는 lifecycle을 정의해 주어야 배포가 가능했다. 물론 ECS가 변경이 되면 클러스터와 서비스를 모두 다시 생성해 주어야 한다. 만약 Production 운영중이라면, ECS는 수정할 수 없다.
main.tf
main.tf
locals {
container_name = "${var.random_id_prefix}-${var.application_name}-${terraform.workspace}-api"
}
data "aws_ecs_task_definition" "api" {
task_definition = aws_ecs_task_definition.api.family
depends_on = [aws_ecs_task_definition.api]
}
module "parameters" {
source = "./parameters"
application_name = var.application_name
ssm_depends_on = var.ssm_depends_on
}
resource "aws_ecr_repository" "api" {
name = var.ecr_api_repository_name
image_scanning_configuration {
scan_on_push = var.scan_on_push
}
force_delete = true
tags = {
Environment = "${terraform.workspace}"
}
}
resource "aws_ecr_lifecycle_policy" "api_policy" {
repository = aws_ecr_repository.api.name
policy = file("${path.module}/policies/ecs-lifecycle-policy.json")
}
# ECS cluster
resource "aws_ecs_cluster" "cluster" {
name = "${var.application_name}-api-${terraform.workspace}"
setting {
name = "containerInsights"
value = "enabled"
}
tags = {
Environment = "${terraform.workspace}"
}
}
# AWS Service discovery service
resource "aws_service_discovery_private_dns_namespace" "private_dns_name" {
name = "${var.application_name}.local"
description = "Private DNS"
vpc = var.vpc_id
}
resource "aws_service_discovery_service" "private_dns" {
name = terraform.workspace
dns_config {
namespace_id = aws_service_discovery_private_dns_namespace.private_dns_name.id
dns_records {
ttl = 10
type = "A"
}
routing_policy = "MULTIVALUE"
}
health_check_custom_config {
failure_threshold = 1
}
force_destroy = true
}
# ECS Service
resource "aws_ecs_service" "api" {
name = local.container_name
task_definition = "${aws_ecs_task_definition.api.family}:${max("${aws_ecs_task_definition.api.revision}", "${data.aws_ecs_task_definition.api.revision}")}"
desired_count = 1
launch_type = "FARGATE"
cluster = aws_ecs_cluster.cluster.id
enable_execute_command = true
network_configuration {
security_groups = flatten(["${var.security_groups_ids}", "${var.ecs_security_group.id}"])
subnets = flatten(["${var.private_subnets_ids}"])
assign_public_ip = true
}
deployment_controller {
type = "CODE_DEPLOY"
}
propagate_tags = "TASK_DEFINITION"
enable_ecs_managed_tags = true
health_check_grace_period_seconds = 30
load_balancer {
target_group_arn = var.aws_target_group_blue.arn
container_name = local.container_name
container_port = "8000"
}
# load_balancer {
# target_group_arn = var.aws_target_group_green.arn
# container_name = local.container_name
# container_port = "8000"
# }
service_registries {
registry_arn = aws_service_discovery_service.private_dns.arn
}
tags = {
Environment = "${terraform.workspace}"
}
depends_on = [var.ssm_depends_on]
lifecycle {
ignore_changes = [
desired_count,
load_balancer,
network_configuration,
task_definition
]
}
}
resource "aws_cloudwatch_log_group" "api_log" {
name = "${var.random_id_prefix}-${var.application_name}-${terraform.workspace}"
retention_in_days = 30
tags = {
Environment = "${terraform.workspace}"
Application = "${var.application_name}-api"
}
}
resource "aws_cloudwatch_log_stream" "api_log_stream" {
name = "${var.random_id_prefix}-${terraform.workspace}-jobs-log-stream"
log_group_name = aws_cloudwatch_log_group.api_log.name
}
## ECS task definitions
resource "aws_ecs_task_definition" "api" {
family = local.container_name
container_definitions = <<DEFINITION
[
{
"name": "${local.container_name}",
"image": "${aws_ecr_repository.api.repository_url}",
"portMappings": [
{
"containerPort": 8000,
"hostPort": 8000
}
],
"memory": ${var.api_container_memory},
"networkMode": "awsvpc",
"secrets": [
{
"name": "DATABASE_URL",
"valueFrom": "${module.parameters.DATABASE_URL.name}"
},
{
"name": "APOLLO_KEY",
"valueFrom": "${module.parameters.APOLLO_KEY.name}"
},
{
"name": "S3_ACCESS_KEY_ID",
"valueFrom": "${module.parameters.S3_ACCESS_KEY_ID.name}"
},
{
"name": "S3_ACCESS_SECRET_ID",
"valueFrom": "${module.parameters.S3_ACCESS_SECRET_ID.name}"
},
{
"name": "IAMPORT_KEY",
"valueFrom": "${module.parameters.IAMPORT_KEY.name}"
},
{
"name": "IAMPORT_SECRET_KEY",
"valueFrom": "${module.parameters.IAMPORT_SECRET_KEY.name}"
},
{
"name": "API_SECRET",
"valueFrom": "${module.parameters.API_SECRET.name}"
}
],
"environment": [
{
"name": "API_ENV",
"value": "${terraform.workspace}"
},
{
"name": "NODE_ENV",
"value": "production"
}
],
"logConfiguration": {
"logDriver": "awslogs",
"options": {
"awslogs-group": "${aws_cloudwatch_log_group.api_log.name}",
"awslogs-region": "${var.region}",
"awslogs-stream-prefix": "ecs"
}
},
"linuxParameters": {
"initProcessEnabled": true
}
}
]
DEFINITION
requires_compatibilities = ["FARGATE"]
network_mode = "awsvpc"
cpu = "512"
memory = "1024"
execution_role_arn = var.ecs_execution_role.arn
task_role_arn = var.ecs_execution_role.arn
depends_on = [
var.ssm_depends_on
]
tags = {
Environment = "${terraform.workspace}"
}
}
- Module Parameter variable
parameters/variables.tf
parameters/variables.tf
parameters/variables.tf
variable "application_name" {
description = "Application name"
}
variable "ssm_depends_on" {
type = any
default = []
}
- Module Parameter outputs
parameters/outputs.tf
parameters/outputs.tf
parameters/outputs.tf
output "DATABASE_URL" {
value = data.aws_ssm_parameter.DATABASE_URL
}
output "APOLLO_KEY" {
value = data.aws_ssm_parameter.APOLLO_KEY
}
output "APOLLO_GRAPH_REF" {
value = data.aws_ssm_parameter.APOLLO_GRAPH_REF
}
output "S3_ACCESS_KEY_ID" {
value = data.aws_ssm_parameter.S3_ACCESS_KEY_ID
}
output "S3_ACCESS_SECRET_ID" {
value = data.aws_ssm_parameter.S3_ACCESS_SECRET_ID
}
output "IAMPORT_KEY" {
value = data.aws_ssm_parameter.IAMPORT_KEY
}
output "IAMPORT_SECRET_KEY" {
value = data.aws_ssm_parameter.IAMPORT_SECRET_KEY
}
output "API_SECRET" {
value = data.aws_ssm_parameter.API_SECRET
}
- Module Parameter main
parameters/main.tf
parameters/main.tf
parameters/main.tf
data "aws_ssm_parameter" "DATABASE_URL" {
name = "/${var.application_name}/${terraform.workspace}/DATABASE_URL"
depends_on = [var.ssm_depends_on]
}
data "aws_ssm_parameter" "APOLLO_KEY" {
name = "/${var.application_name}/${terraform.workspace}/APOLLO_KEY"
depends_on = [var.ssm_depends_on]
}
data "aws_ssm_parameter" "APOLLO_GRAPH_REF" {
name = "/${var.application_name}/${terraform.workspace}/APOLLO_GRAPH_REF"
depends_on = [var.ssm_depends_on]
}
data "aws_ssm_parameter" "S3_ACCESS_KEY_ID" {
name = "/${var.application_name}/${terraform.workspace}/S3_ACCESS_KEY_ID"
depends_on = [var.ssm_depends_on]
}
data "aws_ssm_parameter" "S3_ACCESS_SECRET_ID" {
name = "/${var.application_name}/${terraform.workspace}/S3_ACCESS_SECRET_ID"
depends_on = [var.ssm_depends_on]
}
data "aws_ssm_parameter" "IAMPORT_KEY" {
name = "/${var.application_name}/${terraform.workspace}/IAMPORT_KEY"
depends_on = [var.ssm_depends_on]
}
data "aws_ssm_parameter" "IAMPORT_SECRET_KEY" {
name = "/${var.application_name}/${terraform.workspace}/IAMPORT_SECRET_KEY"
depends_on = [var.ssm_depends_on]
}
data "aws_ssm_parameter" "API_SECRET" {
name = "/${var.application_name}/${terraform.workspace}/API_SECRET"
depends_on = [var.ssm_depends_on]
}
- Policies:
policies/ecs-lifecycle-policy.json
policies/ecs-lifecycle-policy.json
policies/ecs-lifecycle-policy.json
{
"rules": [
{
"rulePriority": 1,
"description": "Keep last 10 images",
"selection": {
"tagStatus": "any",
"countType": "imageCountMoreThan",
"countNumber": 10
},
"action": {
"type": "expire"
}
}
]
}
CodePipeline: ./modules/codepipeline
- 변수:
variables.tf
variables.tf
variables.tf
variable "region" {
description = "AWS region"
}
variable "random_id_prefix" {
description = "random prefix"
}
variable "api_pipeline_name" {
description = "Code pipeline project name"
}
variable "buildproject_name" {
description = "build project name"
}
variable "api_repository_name" {
description = "API Repository Name"
}
variable "cluster_name" {
description = "cluster name"
}
variable "api_service_name" {
description = "API name job"
}
- 메인:
main.tf
CodePipeline은 S3 버킷으로 build artifact를 저장하고, Deploy를 수행하도록 한다. 저장 위치는 buildout이다. buildspec.yml에서 CodeDeploy에서 필요한 데이터를 저장해야한다. 특히 taskdef.json과 appspec.yaml을 잘 만들어주어야 삽질을 줄일 수 있다.
main.tf
main.tf
locals {
github_owner = "mystack-platform"
github_repo = var.api_repository_name
}
resource "aws_s3_bucket" "codepipeline_bucket" {
bucket = "${var.random_id_prefix}-codepipeline-bucket"
force_destroy = true
}
resource "aws_s3_bucket_acl" "codepipeline_acl" {
bucket = aws_s3_bucket.codepipeline_bucket.id
acl = "private"
}
resource "aws_s3_bucket_public_access_block" "codepipeline_bucket_access_block" {
bucket = aws_s3_bucket.codepipeline_bucket.id
block_public_acls = true
block_public_policy = true
restrict_public_buckets = true
}
# Role for AWS CodePipeline
resource "aws_iam_role" "codepipeline_role" {
name = "${var.random_id_prefix}-codepipeline-role"
assume_role_policy = file("${path.module}/policies/code-pipeline-role.json")
}
resource "aws_iam_role_policy" "codepipeline_policy" {
name = "${var.random_id_prefix}-codepipeline-policy"
policy = file("${path.module}/policies/codepipeline-service-role-policy.json")
role = aws_iam_role.codepipeline_role.id
}
# Console Action 필요: CodePipeline > Settings
resource "aws_codestarconnections_connection" "github" {
name = "github-connection"
provider_type = "GitHub"
}
resource "aws_codepipeline" "codepipeline_blue-green_api" {
name = "${var.random_id_prefix}-${var.api_pipeline_name}-${terraform.workspace}-blue-green"
role_arn = aws_iam_role.codepipeline_role.arn
artifact_store {
location = aws_s3_bucket.codepipeline_bucket.bucket
type = "S3"
}
stage {
name = "Source"
# https://github.com/hashicorp/terraform-provider-aws/issues/2796#issuecomment-399229140
action {
name = "Source"
category = "Source"
owner = "AWS"
provider = "CodeStarSourceConnection"
version = "1"
output_artifacts = ["source_output"]
configuration = {
ConnectionArn = "${aws_codestarconnections_connection.github.arn}"
FullRepositoryId = "mystack-platform/mystack-api"
BranchName = "deploy/${terraform.workspace}"
}
}
}
stage {
name = "Build"
action {
name = var.buildproject_name
category = "Build"
owner = "AWS"
provider = "CodeBuild"
input_artifacts = ["source_output"]
output_artifacts = ["buildout"]
version = "1"
configuration = {
ProjectName = "${var.buildproject_name}"
}
}
}
stage {
name = "Deploy"
action {
name = "Deploy"
category = "Deploy"
owner = "AWS"
provider = "CodeDeployToECS"
input_artifacts = ["buildout"]
version = "1"
configuration = {
ApplicationName = "${var.api_service_name}-service-deploy"
DeploymentGroupName = "${var.api_service_name}-service-deploy-group"
TaskDefinitionTemplateArtifact = "buildout"
AppSpecTemplateArtifact = "buildout"
}
}
}
}
- CodePipeline Role:
policies/code-pipeline-role.json
policies/code-pipeline-role.json
code-pipeline-role.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Service": "codepipeline.amazonaws.com"
},
"Action": "sts:AssumeRole"
}
]
}
- CodePipeline Service Role Policy:
policies/codepipeline-service-role-policy.json
policies/codepipeline-service-role-policy.json
codepipeline-service-role-policy.json
{
"Statement": [
{
"Action": [
"iam:PassRole"
],
"Resource": "*",
"Effect": "Allow",
"Condition": {
"StringEqualsIfExists": {
"iam:PassedToService": [
"cloudformation.amazonaws.com",
"elasticbeanstalk.amazonaws.com",
"ec2.amazonaws.com",
"ecs-tasks.amazonaws.com"
]
}
}
},
{
"Action": [
"codecommit:CancelUploadArchive",
"codecommit:GetBranch",
"codecommit:GetCommit",
"codecommit:GetUploadArchiveStatus",
"codecommit:UploadArchive"
],
"Resource": "*",
"Effect": "Allow"
},
{
"Action": [
"codedeploy:CreateDeployment",
"codedeploy:GetApplication",
"codedeploy:GetApplicationRevision",
"codedeploy:GetDeployment",
"codedeploy:GetDeploymentConfig",
"codedeploy:RegisterApplicationRevision"
],
"Resource": "*",
"Effect": "Allow"
},
{
"Action": [
"codestar-connections:UseConnection"
],
"Resource": "*",
"Effect": "Allow"
},
{
"Action": [
"elasticbeanstalk:*",
"ec2:*",
"elasticloadbalancing:*",
"autoscaling:*",
"cloudwatch:*",
"s3:*",
"sns:*",
"cloudformation:*",
"rds:*",
"sqs:*",
"ecs:*"
],
"Resource": "*",
"Effect": "Allow"
},
{
"Action": [
"lambda:InvokeFunction",
"lambda:ListFunctions"
],
"Resource": "*",
"Effect": "Allow"
},
{
"Action": [
"opsworks:CreateDeployment",
"opsworks:DescribeApps",
"opsworks:DescribeCommands",
"opsworks:DescribeDeployments",
"opsworks:DescribeInstances",
"opsworks:DescribeStacks",
"opsworks:UpdateApp",
"opsworks:UpdateStack"
],
"Resource": "*",
"Effect": "Allow"
},
{
"Action": [
"cloudformation:CreateStack",
"cloudformation:DeleteStack",
"cloudformation:DescribeStacks",
"cloudformation:UpdateStack",
"cloudformation:CreateChangeSet",
"cloudformation:DeleteChangeSet",
"cloudformation:DescribeChangeSet",
"cloudformation:ExecuteChangeSet",
"cloudformation:SetStackPolicy",
"cloudformation:ValidateTemplate"
],
"Resource": "*",
"Effect": "Allow"
},
{
"Action": [
"codebuild:BatchGetBuilds",
"codebuild:StartBuild"
],
"Resource": "*",
"Effect": "Allow"
},
{
"Effect": "Allow",
"Action": [
"devicefarm:ListProjects",
"devicefarm:ListDevicePools",
"devicefarm:GetRun",
"devicefarm:GetUpload",
"devicefarm:CreateUpload",
"devicefarm:ScheduleRun"
],
"Resource": "*"
},
{
"Effect": "Allow",
"Action": [
"servicecatalog:ListProvisioningArtifacts",
"servicecatalog:CreateProvisioningArtifact",
"servicecatalog:DescribeProvisioningArtifact",
"servicecatalog:DeleteProvisioningArtifact",
"servicecatalog:UpdateProduct"
],
"Resource": "*"
},
{
"Effect": "Allow",
"Action": [
"cloudformation:ValidateTemplate"
],
"Resource": "*"
},
{
"Effect": "Allow",
"Action": [
"ecr:DescribeImages"
],
"Resource": "*"
}
],
"Version": "2012-10-17"
}
CodeBuild ./modules/codebuild
- 변수:
varialbes.tf
variables.tf
variables.tf
variable "region" {
description = "AWS region..."
}
variable "application_name" {
description = "Application name"
}
variable "random_id_prefix" {
description = "random prefix"
}
variable "buildproject_name" {
description = "build project name..."
}
variable "ecr_api_repository_url" {
description = "ecr be repository url..."
}
variable "api_repository_name" {
description = "ecr be repository name..."
}
variable "api_container_memory" {
description = "api_container_memory"
}
variable "api_endpoint_url" {
description = "API Endpoint URL"
}
variable "vpc_id" {
description = "VPC id"
}
variable "subnets_id_1" {
description = "subnets ids"
}
variable "subnets_id_2" {
description = "subnets ids"
}
variable "public_subnet_id_1" {
description = "public subnets ids"
}
variable "public_subnet_id_2" {
description = "public subnets ids"
}
variable "security_groups_ids" {
type = list(any)
description = "The SGs to use"
}
variable "ecs_security_group_id" {
description = "ecs_security_group_id"
}
variable "rds_access_security_group_id" {
description = "RDS Access Security Group ID"
}
variable "rds_db_security_group_id" {
description = "RDS DB Securuty Group ID"
}
variable "ecs_api_task_defination_family" {
description = "ecs_api_task_defination_family"
}
variable "DATABASE_URL" {
description = "DATABASE_URL for Prisma"
}
variable "APOLLO_KEY" {
description = "APOLLO_KEY of Apollo Studio for API"
}
variable "APOLLO_GRAPH_REF" {
description = "APOLLO_GRAPH_REF of Apollo Studio for API"
}
variable "ssm_depends_on" {
type = any
default = []
}
variable "rds_depend_on" {
description = "RDS depend on"
type = any
default = []
}
- 출력:
outputs.tf
outputs.tf
outputs.tf
output "build_project_name" {
value = aws_codebuild_project.codebuild_project.name
}
- 메인:
main.tf
template_file을 통해 각 Role과 Policy를 렌더링하고, buildspec.yml을 렌더링 한다. 그리고 빌드과정에서 필요한 VPC와 서브넷을 연결해주고, 필요하면 환경변수를 붙여준다.
main.tf
main.tf
locals {
container_name = "${var.random_id_prefix}-${var.application_name}-${terraform.workspace}-api"
}
data "aws_caller_identity" "current" {}
data "aws_secretsmanager_secret_version" "secret-version" {
secret_id = "rds-db-credentials/${var.application_name}/${terraform.workspace}/${var.random_id_prefix}"
depends_on = [
var.rds_depend_on
]
}
data "template_file" "codebuild-role" {
template = file("${path.module}/policies/codebuild-role-policy.json")
vars = {
region = "${var.region}"
account_id = "${data.aws_caller_identity.current.account_id}"
subnet_id_1 = "${var.subnets_id_1}"
subnet_id_2 = "${var.subnets_id_2}"
}
}
resource "aws_iam_role" "codebuild_role" {
name = "${var.random_id_prefix}-codebuild-role"
assume_role_policy = file("${path.module}/policies/codebuild-role.json")
}
resource "aws_iam_role_policy" "codebuild_ec2container_policy" {
name = "${var.random_id_prefix}-codebuild-ec2container-policy"
policy = file("${path.module}/policies/codepipeline-ec2container-role-policy.json")
role = aws_iam_role.codebuild_role.id
}
resource "aws_iam_role_policy" "codebuild_policy" {
name = "${var.random_id_prefix}-codebuild-policy"
# policy = file("${path.module}/policies/codebuild-role-policy.json")
policy = data.template_file.codebuild-role.rendered
role = aws_iam_role.codebuild_role.id
}
resource "aws_iam_role_policy" "codebuild_ecs_policy" {
name = "${var.random_id_prefix}-ecs-policy"
policy = file("${path.module}/policies/codebuild-ecs-role-policy.json")
role = aws_iam_role.codebuild_role.id
}
data "template_file" "buildspec" {
template = file("${path.module}/buildspec/buildspec.yml")
vars = {
region = "${var.region}"
ecr_api_repository_url = "${var.ecr_api_repository_url}"
api_repository_name = "${var.api_repository_name}"
task_definition = local.container_name
apollo_graph_ref = "${var.APOLLO_GRAPH_REF}"
api_endpoint_url = "${var.api_endpoint_url}"
# task_definition = "${var.application_name}-${terraform.workspace}-api"
}
}
resource "aws_codebuild_project" "codebuild_project" {
name = join("-", [var.random_id_prefix, var.buildproject_name, "codebuild"])
description = "API docker container image build"
build_timeout = "50"
service_role = aws_iam_role.codebuild_role.arn
artifacts {
# name = join("-", ["ecs-build", var.application_name, terraform.workspace])
# override_artifact_name = true
# packaging = "NONE"
type = "CODEPIPELINE"
}
environment {
compute_type = "BUILD_GENERAL1_SMALL"
image = "aws/codebuild/amazonlinux2-x86_64-standard:2.0"
type = "LINUX_CONTAINER"
image_pull_credentials_type = "CODEBUILD"
privileged_mode = true
environment_variable {
name = "REPOSITORY_URI"
value = var.ecr_api_repository_url
}
environment_variable {
name = "TASK_DEFINITION"
value = "arn:aws:ecs:${var.region}:${data.aws_caller_identity.current.account_id}:task-definition/${var.ecs_api_task_defination_family}"
}
environment_variable {
name = "CONTAINER_NAME"
value = local.container_name
}
environment_variable {
name = "SUBNET_1"
value = var.subnets_id_1
}
environment_variable {
name = "SUBNET_2"
value = var.subnets_id_2
}
environment_variable {
name = "SECURITY_GROUP"
value = var.ecs_security_group_id
}
environment_variable {
name = "DATABASE_URL"
value = var.DATABASE_URL
}
environment_variable {
name = "APOLLO_KEY"
value = var.APOLLO_KEY
}
environment_variable {
name = "APOLLO_GRAPH_REF"
value = var.APOLLO_GRAPH_REF
}
}
source {
type = "CODEPIPELINE"
buildspec = data.template_file.buildspec.rendered
}
vpc_config {
vpc_id = var.vpc_id
subnets = [
var.subnets_id_1,
var.subnets_id_2
]
security_group_ids = [
var.ecs_security_group_id,
var.rds_access_security_group_id,
var.rds_db_security_group_id
]
}
depends_on = [
var.ssm_depends_on
]
tags = {
Environment = "${terraform.workspace}"
}
}
- Buildspec:
buildspec/buildspec.yml
이 buildspec.yml은 내가 사용하는 API앱에서 필요한 과정이다. build phase에서 API 필요에 맞게 수정해야 한다.
buildspec/buildspec.yml
buildspec.yml
version: 0.2
phases:
install:
runtime-versions:
docker: 18
commands:
- echo "cd into $CODEBUILD_SRC_DIR"
- cd $CODEBUILD_SRC_DIR
- echo "NVM install"
- curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.39.1/install.sh | bash
- export NVM_DIR="$HOME/.nvm"
- '[ -s "$NVM_DIR/nvm.sh" ] && \. "$NVM_DIR/nvm.sh"' # This loads nvm
- '[ -s "$NVM_DIR/bash_completion" ] && \. "$NVM_DIR/bash_completion"' # This loads nvm bash_completion
pre_build:
commands:
- echo Logging in to Amazon ECR...
- aws --version
- $(aws ecr get-login --no-include-email --region ${region})
- REPOSITORY_URI=${ecr_api_repository_url}
- COMMIT_HASH=$(echo $CODEBUILD_RESOLVED_SOURCE_VERSION | cut -c 1-8)
- IMAGE_TAG=$${COMMIT_HASH}
build:
on-failure: ABORT
commands:
- echo "Make DATABASEURL env var for prisma"
- echo "DATABASE_URL=$DATABASE_URL" > .env
- . "$NVM_DIR/nvm.sh" && nvm install 16
- . "$NVM_DIR/nvm.sh" && nvm use 16
- echo "Build a service"
- yarn install
# Prisma generate and GraphQL Schema generate
- yarn generate
# Type Check
- yarn typecheck
# Unit Test
- NODE_ENV=test yarn test --collectCoverage
# TypeScript build
- yarn build
# Database migration by using Prisma Engine. DATABASE_URL should be specified in environment.
- yarn prisma migrate deploy
# GraphQL schema send to Apollo Studio
- yarn rover subgraph publish ${apollo_graph_ref} --name mystack --schema ./src/generated/schema.graphql --routing-url ${api_endpoint_url}
# Build Docker image
- echo Build started on `date`
- echo Building the Docker image...
- docker build --cache-from ${ecr_api_repository_url}:latest -t ${api_repository_name} .
- docker tag ${api_repository_name}:latest ${ecr_api_repository_url}:latest
- docker build -t ${api_repository_name}:latest .
- docker tag ${api_repository_name}:latest ${ecr_api_repository_url}:$${IMAGE_TAG}
post_build:
on-failure: ABORT
commands:
- echo Pushing the Docker images...
- docker push ${ecr_api_repository_url}:latest
- docker push ${ecr_api_repository_url}:$${IMAGE_TAG}
- echo Writing image definitions file...
- aws ecs describe-task-definition --task-definition ${task_definition} | jq '.taskDefinition' > taskdef.json
- envsubst < appspec_template.yaml > appspec.yaml
- printf '[{"name":"api","imageUri":"%s"}]' ${ecr_api_repository_url}:latest > apiimagedefinitions.json
artifacts:
files:
- appspec.yaml
- apiimagedefinitions.json
- taskdef.json
# reports:
# jest_reports:
# files:
# - testResult.xml
# file-format: JUNITXML
# base-directory: .report
# coverage_reports:
# files:
# - coverage/clover.xml
# file-format: CLOVERXML
- CodeBuild ECS Role Policy:
policies/codebuild-ecs-role-policy.json
일반적으로 사용하는 정책에 ServiceDiscovery를 붙였다. 같은 VPC에서 로컬 도메인을 붙이기 위해서이다.
codebuild-ecs-role-policy.json
codebuild-ecs-role-policy.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"application-autoscaling:DeleteScalingPolicy",
"application-autoscaling:DeregisterScalableTarget",
"application-autoscaling:DescribeScalableTargets",
"application-autoscaling:DescribeScalingActivities",
"application-autoscaling:DescribeScalingPolicies",
"application-autoscaling:PutScalingPolicy",
"application-autoscaling:RegisterScalableTarget",
"appmesh:ListMeshes",
"appmesh:ListVirtualNodes",
"appmesh:DescribeVirtualNode",
"autoscaling:UpdateAutoScalingGroup",
"autoscaling:CreateAutoScalingGroup",
"autoscaling:CreateLaunchConfiguration",
"autoscaling:DeleteAutoScalingGroup",
"autoscaling:DeleteLaunchConfiguration",
"autoscaling:Describe*",
"cloudformation:CreateStack",
"cloudformation:DeleteStack",
"cloudformation:DescribeStack*",
"cloudformation:UpdateStack",
"cloudwatch:DescribeAlarms",
"cloudwatch:DeleteAlarms",
"cloudwatch:GetMetricStatistics",
"cloudwatch:PutMetricAlarm",
"codedeploy:CreateApplication",
"codedeploy:CreateDeployment",
"codedeploy:CreateDeploymentGroup",
"codedeploy:GetApplication",
"codedeploy:GetDeployment",
"codedeploy:GetDeploymentGroup",
"codedeploy:ListApplications",
"codedeploy:ListDeploymentGroups",
"codedeploy:ListDeployments",
"codedeploy:StopDeployment",
"codedeploy:GetDeploymentTarget",
"codedeploy:ListDeploymentTargets",
"codedeploy:GetDeploymentConfig",
"codedeploy:GetApplicationRevision",
"codedeploy:RegisterApplicationRevision",
"codedeploy:BatchGetApplicationRevisions",
"codedeploy:BatchGetDeploymentGroups",
"codedeploy:BatchGetDeployments",
"codedeploy:BatchGetApplications",
"codedeploy:ListApplicationRevisions",
"codedeploy:ListDeploymentConfigs",
"codedeploy:ContinueDeployment",
"sns:ListTopics",
"lambda:ListFunctions",
"ec2:AssociateRouteTable",
"ec2:AttachInternetGateway",
"ec2:AuthorizeSecurityGroupIngress",
"ec2:CancelSpotFleetRequests",
"ec2:CreateInternetGateway",
"ec2:CreateLaunchTemplate",
"ec2:CreateRoute",
"ec2:CreateRouteTable",
"ec2:CreateSecurityGroup",
"ec2:CreateSubnet",
"ec2:CreateVpc",
"ec2:DeleteLaunchTemplate",
"ec2:DeleteSubnet",
"ec2:DeleteVpc",
"ec2:Describe*",
"ec2:DetachInternetGateway",
"ec2:DisassociateRouteTable",
"ec2:ModifySubnetAttribute",
"ec2:ModifyVpcAttribute",
"ec2:RunInstances",
"ec2:RequestSpotFleet",
"elasticfilesystem:DescribeFileSystems",
"elasticfilesystem:DescribeAccessPoints",
"elasticloadbalancing:CreateListener",
"elasticloadbalancing:CreateLoadBalancer",
"elasticloadbalancing:CreateRule",
"elasticloadbalancing:CreateTargetGroup",
"elasticloadbalancing:DeleteListener",
"elasticloadbalancing:DeleteLoadBalancer",
"elasticloadbalancing:DeleteRule",
"elasticloadbalancing:DeleteTargetGroup",
"elasticloadbalancing:DescribeListeners",
"elasticloadbalancing:DescribeLoadBalancers",
"elasticloadbalancing:DescribeRules",
"elasticloadbalancing:DescribeTargetGroups",
"ecs:*",
"events:DescribeRule",
"events:DeleteRule",
"events:ListRuleNamesByTarget",
"events:ListTargetsByRule",
"events:PutRule",
"events:PutTargets",
"events:RemoveTargets",
"iam:ListAttachedRolePolicies",
"iam:ListInstanceProfiles",
"iam:ListRoles",
"logs:CreateLogGroup",
"logs:DescribeLogGroups",
"logs:FilterLogEvents",
"route53:GetHostedZone",
"route53:ListHostedZonesByName",
"route53:CreateHostedZone",
"route53:DeleteHostedZone",
"route53:GetHealthCheck",
"servicediscovery:CreatePrivateDnsNamespace",
"servicediscovery:CreateService",
"servicediscovery:GetNamespace",
"servicediscovery:GetOperation",
"servicediscovery:GetService",
"servicediscovery:ListNamespaces",
"servicediscovery:ListServices",
"servicediscovery:UpdateService",
"servicediscovery:DeleteService"
],
"Resource": [
"*"
]
},
{
"Effect": "Allow",
"Action": [
"ssm:GetParametersByPath",
"ssm:GetParameters",
"ssm:GetParameter"
],
"Resource": "arn:aws:ssm:*:*:parameter/aws/service/ecs*"
},
{
"Effect": "Allow",
"Action": [
"ec2:DeleteInternetGateway",
"ec2:DeleteRoute",
"ec2:DeleteRouteTable",
"ec2:DeleteSecurityGroup"
],
"Resource": [
"*"
],
"Condition": {
"StringLike": {
"ec2:ResourceTag/aws:cloudformation:stack-name": "EC2ContainerService-*"
}
}
},
{
"Action": "iam:PassRole",
"Effect": "Allow",
"Resource": [
"*"
],
"Condition": {
"StringLike": {
"iam:PassedToService": "ecs-tasks.amazonaws.com"
}
}
},
{
"Action": "iam:PassRole",
"Effect": "Allow",
"Resource": [
"arn:aws:iam::*:role/ecsInstanceRole*"
],
"Condition": {
"StringLike": {
"iam:PassedToService": [
"ec2.amazonaws.com",
"ec2.amazonaws.com.cn"
]
}
}
},
{
"Action": "iam:PassRole",
"Effect": "Allow",
"Resource": [
"arn:aws:iam::*:role/ecsAutoscaleRole*"
],
"Condition": {
"StringLike": {
"iam:PassedToService": [
"application-autoscaling.amazonaws.com",
"application-autoscaling.amazonaws.com.cn"
]
}
}
},
{
"Effect": "Allow",
"Action": "iam:CreateServiceLinkedRole",
"Resource": "*",
"Condition": {
"StringLike": {
"iam:AWSServiceName": [
"ecs.amazonaws.com",
"spot.amazonaws.com",
"spotfleet.amazonaws.com",
"ecs.application-autoscaling.amazonaws.com",
"autoscaling.amazonaws.com"
]
}
}
}
]
}
- CodeBuild Role Policy:
policies/codebuild-role-policy.json
codebuild-role-policy.json
codebuild-role-policy.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Resource": [
"*"
],
"Action": [
"logs:CreateLogGroup",
"logs:CreateLogStream",
"logs:PutLogEvents"
]
},
{
"Effect": "Allow",
"Resource": [
"*"
],
"Action": [
"s3:PutObject",
"s3:GetObject",
"s3:GetObjectVersion",
"s3:GetBucketAcl",
"s3:GetBucketLocation"
]
},
{
"Effect": "Allow",
"Action": [
"codebuild:CreateReportGroup",
"codebuild:CreateReport",
"codebuild:UpdateReport",
"codebuild:BatchPutTestCases"
],
"Resource": [
"*"
]
},
{
"Effect": "Allow",
"Action": [
"ec2:CreateNetworkInterface",
"ec2:DescribeDhcpOptions",
"ec2:DescribeNetworkInterfaces",
"ec2:DeleteNetworkInterface",
"ec2:DescribeSubnets",
"ec2:DescribeSecurityGroups",
"ec2:DescribeVpcs"
],
"Resource": "*"
},
{
"Effect": "Allow",
"Action": [
"ec2:CreateNetworkInterfacePermission"
],
"Resource": "arn:aws:ec2:${region}:${account_id}:network-interface/*",
"Condition": {
"StringEquals": {
"ec2:AuthorizedService": "codebuild.amazonaws.com"
},
"ArnEquals": {
"ec2:Subnet": [
"arn:aws:ec2:${region}:${account_id}:subnet/${subnet_id_1}",
"arn:aws:ec2:${region}:${account_id}:subnet/${subnet_id_2}"
]
}
}
}
]
}
- ColdeBuild Role
policies/codebuild-role.json
codebuild-role.json
codebuild-role.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Service": "codebuild.amazonaws.com"
},
"Action": "sts:AssumeRole"
}
]
}
CodeDeploy ./modules/codedeploy
우선 블루-그린 배포와 관련해서 Terraform 블로그부터 숙지해야한다. 그리고 가장 도움을 많이 받았던 내용은 AWS CLI문서 예제였다. CLI를 사용해서 Blue-Green CodeDeploy 앱을 만드는 과정에서 많은 힌트를 얻어서 오류 수정이 가능했다.
- 변수:
variables.tf
variables.tf
variables.tf
variable "region" {
description = "AWS Region"
}
variable "random_id_prefix" {
description = "random prefix"
}
variable "ecs_cluster_name" {
description = "ecs cluster name"
}
variable "api_service_name" {
description = "api_service_name"
}
variable "aws_target_group_blue_name" {
description = "API AWS Target Group Blue name"
}
variable "aws_target_group_green_name" {
description = "API AWS Target Group Green name"
}
variable "api_alb_listener_arn" {
description = "API AWS Load Balancer Listener arn"
}
variable "api_alb_test_listener_arn" {
description = "API AWS Load Balancer Test Listener arn"
}
variable "ecs_execution_role_arn" {
description = "ecs_execution_role_arn"
}
- 메인:
main.tf
일반적인 CodeDeploy best practice에서 load_balancer에 prod_traffic_route을 설정하는데 삽질을 많이 했다. Blue 로드밸런서를 붙여주면 CodeDeploy는 배포과정에서 Blue에서 자동으로 Green으로 변경해주며, ALB 설정도 Green으로 변경해준다. 이 사실을 모르고 두개를 붙여보기도 하고, ALB에 여러 타겟을 붙여보기도 하였다. 이때 발생하는 오류에 대한 해결은
오류 메시지: The ELB could not be updated due to the following error: Primary taskset target group must be behind listener:(다음 오류로 인해 ELB를 업데이트할 수 없습니다. 기본 태스크 세트 대상 그룹이 리스너를 통해 연결되어야 합니다.) Elastic Load Balancing 리스너 또는 대상 그룹이 잘못 구성된 경우 이 오류가 발생합니다. ELB 기본 리스너와 테스트 리스너가 모두 현재 워크로드를 처리하고 있는 기본 대상 그룹을 가리키는지 확인합니다.
즉, CodeDeploy가 쓰는 ALB는 단 하나이고, ECS Taskset은 모두 CodeDeploy가 관리하는 ALB에 붙어있어야 한다. 해당 문제는 블루/그린 배포 유형에 대한 로드 밸런서 구성을 면밀히 읽어보아야 한다.
main.tf
main.tf
data "aws_iam_policy_document" "assume_by_codedeploy" {
statement {
sid = ""
effect = "Allow"
actions = ["sts:AssumeRole"]
principals {
type = "Service"
identifiers = ["codedeploy.amazonaws.com"]
}
}
}
resource "aws_iam_role" "codedeploy" {
name = "${var.api_service_name}-codedeploy-${var.random_id_prefix}"
assume_role_policy = data.aws_iam_policy_document.assume_by_codedeploy.json
}
data "aws_iam_policy_document" "codedeploy" {
statement {
sid = "AllowLoadBalancingAndECSModifications"
effect = "Allow"
actions = [
"ecs:CreateTaskSet",
"ecs:DeleteTaskSet",
"ecs:DescribeServices",
"ecs:UpdateServicePrimaryTaskSet",
"elasticloadbalancing:DescribeListeners",
"elasticloadbalancing:DescribeRules",
"elasticloadbalancing:DescribeTargetGroups",
"elasticloadbalancing:ModifyListener",
"elasticloadbalancing:ModifyRule",
"lambda:InvokeFunction",
"cloudwatch:DescribeAlarms",
"sns:Publish",
"s3:GetObject",
"s3:GetObjectMetadata",
"s3:GetObjectVersion"
]
resources = ["*"]
}
statement {
sid = "AllowPassRole"
effect = "Allow"
actions = ["iam:PassRole"]
resources = [
"${var.ecs_execution_role_arn}"
]
}
}
resource "aws_iam_role_policy" "codedeploy" {
role = aws_iam_role.codedeploy.name
policy = data.aws_iam_policy_document.codedeploy.json
}
resource "aws_codedeploy_app" "this" {
compute_platform = "ECS"
name = "${var.api_service_name}-service-deploy"
}
resource "aws_codedeploy_deployment_group" "api_service" {
app_name = aws_codedeploy_app.this.name
deployment_group_name = "${var.api_service_name}-service-deploy-group"
deployment_config_name = "CodeDeployDefault.ECSAllAtOnce"
service_role_arn = aws_iam_role.codedeploy.arn
auto_rollback_configuration {
enabled = true
events = ["DEPLOYMENT_FAILURE"]
}
blue_green_deployment_config {
deployment_ready_option {
action_on_timeout = "CONTINUE_DEPLOYMENT"
}
terminate_blue_instances_on_deployment_success {
action = "TERMINATE"
termination_wait_time_in_minutes = 1
}
}
ecs_service {
cluster_name = var.ecs_cluster_name
service_name = var.api_service_name
}
deployment_style {
deployment_option = "WITH_TRAFFIC_CONTROL"
deployment_type = "BLUE_GREEN"
}
load_balancer_info {
target_group_pair_info {
prod_traffic_route {
listener_arns = [var.api_alb_listener_arn]
}
target_group {
name = var.aws_target_group_blue_name
}
target_group {
name = var.aws_target_group_green_name
}
# test_traffic_route {
# listener_arns = [var.api_alb_test_listener_arn]
# }
}
}
}
Terraform main
최종 Terraform의 메인은 다음과 같다. 이로써 97개의 인프라를 설정하게 된다. 각 워크스페이스 마다 배포를 시도하고 CodeDeploy로 Blue Green 배포하는 과정까지 확인해보았다.
- 변수:
variables.tf
variables.tf
variables.tf
variable "application_name" {
description = "Application name"
type = string
default = "mystack"
}
variable "region" {
description = "The region Terraform deploys these stacks"
type = string
default = "ap-northeast-2"
}
## Networks: VPC, Subnet, NAT, Route
variable "vpc_cidr" {
description = "CIDR block for VPC"
type = string
default = "10.0.0.0/16"
}
variable "public_subnets_cidr" {
description = "Available CIDR blocks for public subnets"
type = list(string)
default = [
"10.0.1.0/24",
"10.0.2.0/24",
# "10.0.3.0/24",
# "10.0.4.0/24",
# "10.0.5.0/24",
# "10.0.6.0/24",
# "10.0.7.0/24",
# "10.0.8.0/24",
]
}
variable "private_subnets_cidr" {
description = "Available cidr blocks for private subnets"
type = list(string)
default = [
"10.0.101.0/24",
"10.0.102.0/24",
# "10.0.103.0/24",
# "10.0.104.0/24",
# "10.0.105.0/24",
# "10.0.106.0/24",
# "10.0.107.0/24",
# "10.0.108.0/24",
]
}
## API ECS: Fargate
variable "ecr_api_repository_name" {
description = "The name of API repository"
type = string
default = "mystack-api"
}
variable "ecr_auth_repository_name" {
description = "The name of Auth repository"
type = string
default = "mystack-auth"
}
variable "aws_cloudwatch_log_group" {
description = "aws_cloudwatch_log_group"
type = string
default = "ecs/mystack/log"
}
variable "scan_on_push" {
description = "ECR scan on push"
type = bool
default = true
}
variable "api_container_memory" {
description = "API container memory"
type = number
default = 512
}
variable "api_container_port" {
description = "API container port"
type = number
default = 8000
}
variable "root_domain" {
description = "Root domain of this application (API)"
type = string
default = "platform.mystack.io"
}
## RDS
variable "replication_source_identifier" {
description = "replication source identifier"
type = string
default = "source_identifier"
}
variable "engine" {
description = "engine"
type = string
default = "aurora-postgresql"
}
variable "engine_mode" {
description = "engine mode"
type = string
default = "serverless"
}
variable "database_name" {
description = "database name"
type = string
default = "authdb"
}
variable "master_username" {
description = "master username"
type = string
default = "postgres"
}
variable "db_cluster_parameter_group_name" {
description = "db cluster parameter group name"
type = string
default = "cluster_parameter"
}
variable "final_snapshot_identifier" {
description = "final snapshot identifier"
type = string
default = "finalsnapshot"
}
variable "backup_retention_period" {
description = "backup retention period"
type = number
default = 14
}
variable "preferred_backup_window" {
description = "preferred backup window"
type = string
default = "02:00-03:00"
}
variable "preferred_maintenance_window" {
description = "preferred maintenance window"
type = string
default = "sun:05:00-sun:06:00"
}
variable "skip_final_snapshot" {
description = "skip final snapshot"
type = bool
default = false
}
variable "storage_encrypted" {
description = "storage encrypted"
type = bool
default = true
}
variable "apply_immediately" {
description = "apply immediately"
type = bool
default = true
}
variable "iam_database_authentication_enabled" {
description = "iam database authentication enabled"
type = bool
default = false
}
variable "backtrack_window" {
description = "backtrack window"
type = number
default = 0
}
variable "copy_tags_to_snapshot" {
description = "copy tags to snapshot"
type = bool
default = false
}
variable "deletion_protection" {
description = "deletion protection"
type = bool
default = true
}
variable "auto_pause" {
description = "auto pause"
type = bool
default = true
}
variable "max_capacity" {
description = "max capacity"
type = number
default = 4
}
variable "min_capacity" {
description = "min capacity"
type = number
default = 2
}
variable "seconds_until_auto_pause" {
description = "seconds until auto pause"
type = number
default = 300
}
## CodeBuild
variable "buildproject_name" {
description = "Build project name"
type = string
default = "mystack-api"
}
## API: CodePipeline
variable "api_pipeline_name" {
description = "Code pipeline project name"
type = string
default = "mystack-api-pipeline"
}
variable "api_repository_name" {
description = "API Repository Name"
type = string
default = "mystack-api"
}
# AWS SSM Parameter store
variable "APOLLO_KEY" {
description = "Apollo secret key of Apollo Studio for API container"
type = string
sensitive = true
}
variable "APOLLO_GRAPH_REF" {
description = "Apollo Graph Ref value of Apollo Studio for API container"
type = string
sensitive = false
}
variable "S3_ACCESS_KEY_ID" {
description = "AWS S3 Access Key ID"
type = string
sensitive = true
}
variable "S3_ACCESS_SECRET_ID" {
description = "AWS S3 Access Secret ID"
type = string
sensitive = true
}
variable "IAMPORT_KEY" {
description = "IAMPORT Access Key"
type = string
sensitive = true
}
variable "IAMPORT_SECRET_KEY" {
description = "IAMPORT Access Secret Key"
type = string
sensitive = true
}
variable "API_SECRET" {
description = "API Secret Key"
type = string
sensitive = true
}
- 메인:
main.tf
앞선 tWIL에서 작성한 것 처럼 workspace default에서 Remote로 Live 상태 관리를 위한 S3 backend 를 설정하였고, 다른 워크스페이스에서는 주석처리를 해주어야 한다.
각 모듈간에 의존성이 필요한 경우가 있다. RDS가 만들어져야 SecretManager의 data소스를 그리고 SSM Parameter가 먼저 만들어져야 data 소스를 사용할 수 있다. 따라서 이 의존성이 필요한 모듈들은 variable로 넘겨주는 방식으로 설정하였다.
main.tf
provider "aws" {
region = var.region
}
data "aws_availability_zones" "available" {}
resource "random_id" "random_id_prefix" {
byte_length = 2
}
# Terraform state management
# https://blog.gruntwork.io/how-to-manage-terraform-state-28f5697e68fa
terraform {
backend "s3" {
bucket = "mystack-terraform-running-state"
key = "global/s3/terraform.tfstate"
region = "ap-northeast-2"
dynamodb_table = "mystack-terraform-running-locks"
encrypt = true
}
}
// Only use very first `default` workspace state creation
# data "terraform_remote_state" "network" {
# backend = "s3"
# config = {
# bucket = "mystack-terraform-running-state"
# key = "global/s3/terraform.tfstate"
# region = "ap-northeast-2"
# }
# }
# module "terraform_state" {
# source = "./modules/terraform-state"
# s3_terraform_state_bucket_name = "mystack-terraform-running-state"
# s3_terraform_state_key = "global/s3/terraform.tfstate"
# dynamodb_terraform_state_locks_table = "mystack-terraform-running-locks"
# }
# AWS SSM Paremeter
module "ssm-parameter" {
source = "./modules/ssm"
application_name = var.application_name
random_id_prefix = random_id.random_id_prefix.hex
rds_depend_on = module.database
APOLLO_KEY = var.APOLLO_KEY
APOLLO_GRAPH_REF = "${var.APOLLO_GRAPH_REF}${terraform.workspace}"
S3_ACCESS_KEY_ID = var.S3_ACCESS_KEY_ID
S3_ACCESS_SECRET_ID = var.S3_ACCESS_SECRET_ID
IAMPORT_KEY = var.IAMPORT_KEY
IAMPORT_SECRET_KEY = var.IAMPORT_SECRET_KEY
API_SECRET = var.API_SECRET
}
module "networks" {
source = "./modules/networks"
application_name = var.application_name
region = var.region
vpc_cidr = var.vpc_cidr
public_subnets_cidr = var.public_subnets_cidr
private_subnets_cidr = var.private_subnets_cidr
availability_zones = data.aws_availability_zones.available.names
namespace_name = "${var.application_name}.${terraform.workspace}"
}
module "storage" {
source = "./modules/storage"
application_name = var.application_name
uploads_bucket_prefix = "${random_id.random_id_prefix.hex}-assets"
}
module "codebuild" {
source = "./modules/codebuild"
region = var.region
application_name = var.application_name
random_id_prefix = random_id.random_id_prefix.hex
buildproject_name = var.buildproject_name
ecr_api_repository_url = module.api-ecs.api_repository_url
api_repository_name = module.api-ecs.api_repository_name
api_container_memory = var.api_container_memory
vpc_id = module.networks.vpc_id
security_groups_ids = module.networks.security_groups_ids
ecs_security_group_id = module.api-sg.ecs_security_group.id
rds_access_security_group_id = module.database.aws_rds_access_security_group_ids
rds_db_security_group_id = module.database.aws_rds_db_security_group_ids
subnets_id_1 = module.networks.private_subnet_1
public_subnet_id_1 = module.networks.public_subnet_1
subnets_id_2 = module.networks.private_subnet_2
public_subnet_id_2 = module.networks.public_subnet_2
ecs_api_task_defination_family = module.api-ecs.ecs_api_task_defination_family
DATABASE_URL = module.ssm-parameter.DATABASE_URL
APOLLO_KEY = module.ssm-parameter.APOLLO_KEY
APOLLO_GRAPH_REF = module.ssm-parameter.APOLLO_GRAPH_REF
api_endpoint_url = "https://${module.api-alb.route53.fqdn}"
ssm_depends_on = module.ssm-parameter
rds_depend_on = module.database
}
module "codedeploy" {
source = "./modules/codedeploy"
region = var.region
random_id_prefix = random_id.random_id_prefix.hex
ecs_execution_role_arn = module.api-iam.ecs_execution_role.arn
ecs_cluster_name = module.api-ecs.cluster_name
api_service_name = module.api-ecs.api_service_name
aws_target_group_blue_name = module.api-alb.aws_target_group_blue.name
aws_target_group_green_name = module.api-alb.aws_target_group_green.name
api_alb_listener_arn = module.api-alb.aws_alb_blue_green.arn
api_alb_test_listener_arn = module.api-alb.aws_alb_test_blue_green.arn
}
module "codepipeline" {
source = "./modules/codepipeline"
region = var.region
random_id_prefix = random_id.random_id_prefix.hex
api_pipeline_name = var.api_pipeline_name
buildproject_name = module.codebuild.build_project_name
api_repository_name = var.api_repository_name
cluster_name = module.api-ecs.cluster_name
api_service_name = module.api-ecs.api_service_name
}
module "api-iam" {
source = "./modules/api-iam"
application_name = var.application_name
region = var.region
random_id_prefix = random_id.random_id_prefix.hex
}
module "api-alb" {
source = "./modules/api-alb"
application_name = var.application_name
region = var.region
random_id_prefix = random_id.random_id_prefix.hex
vpc_id = module.networks.vpc_id
public_subnet_ids = ["${module.networks.public_subnets_id}"]
security_groups_ids = module.networks.security_groups_ids
ecs_security_group = module.api-sg.ecs_security_group
alb_security_group = module.api-sg.alb_security_group
root_domain = var.root_domain
}
module "api-ecs" {
source = "./modules/api-ecs"
application_name = var.application_name
region = var.region
vpc_id = module.networks.vpc_id
random_id_prefix = random_id.random_id_prefix.hex
ecr_api_repository_name = "${var.ecr_api_repository_name}-${terraform.workspace}-${random_id.random_id_prefix.hex}"
aws_target_group_blue = module.api-alb.aws_target_group_blue
aws_target_group_green = module.api-alb.aws_target_group_green
ecs_execution_role = module.api-iam.ecs_execution_role
security_groups_ids = module.networks.security_groups_ids
ecs_security_group = module.api-sg.ecs_security_group
private_subnets_ids = ["${module.networks.private_subnets_id}"]
container_port = var.api_container_port
scan_on_push = var.scan_on_push
api_container_memory = var.api_container_memory
DATABASE_URL = module.ssm-parameter.DATABASE_URL
APOLLO_KEY = module.ssm-parameter.APOLLO_KEY
APOLLO_GRAPH_REF = module.ssm-parameter.APOLLO_GRAPH_REF
S3_ACCESS_KEY_ID = module.ssm-parameter.S3_ACCESS_KEY_ID
S3_ACCESS_SECRET_ID = module.ssm-parameter.S3_ACCESS_SECRET_ID
IAMPORT_KEY = module.ssm-parameter.IAMPORT_KEY
IAMPORT_SECRET_KEY = module.ssm-parameter.IAMPORT_SECRET_KEY
API_SECRET = module.ssm-parameter.API_SECRET
ssm_depends_on = module.ssm-parameter
}
module "api-autoscaling" {
source = "./modules/api-autoscaling"
application_name = var.application_name
region = var.region
random_id_prefix = random_id.random_id_prefix.hex
ecs_autoscale_role = module.api-iam.ecs_execution_role
ecs_cluster_name = module.api-ecs.cluster_name
ecs_service_name = module.api-ecs.api_service_name
}
module "api-sg" {
source = "./modules/api-sg"
application_name = var.application_name
region = var.region
random_id_prefix = random_id.random_id_prefix.hex
vpc_id = module.networks.vpc_id
container_port = var.api_container_port
}
module "database" {
source = "./modules/database"
application_name = var.application_name
random_id_prefix = random_id.random_id_prefix.hex
global_cluster_identifier = "${var.application_name}-${terraform.workspace}-${random_id.random_id_prefix.hex}"
cluster_identifier = "${var.application_name}-${terraform.workspace}-${random_id.random_id_prefix.hex}"
replication_source_identifier = var.replication_source_identifier
source_region = var.region
engine = var.engine
engine_mode = var.engine_mode
database_name = var.database_name
master_username = var.master_username
vpc_security_group_ids = module.networks.default_sg_id
db_cluster_parameter_group_name = var.db_cluster_parameter_group_name
subnet_ids = ["${module.networks.private_subnets_id}"]
final_snapshot_identifier = "${terraform.workspace}-snapshot-${random_id.random_id_prefix.dec}"
backup_retention_period = var.backup_retention_period
preferred_backup_window = var.preferred_backup_window
preferred_maintenance_window = var.preferred_maintenance_window
skip_final_snapshot = var.skip_final_snapshot
storage_encrypted = var.storage_encrypted
apply_immediately = var.apply_immediately
iam_database_authentication_enabled = var.iam_database_authentication_enabled
backtrack_window = var.backtrack_window
copy_tags_to_snapshot = var.copy_tags_to_snapshot
deletion_protection = var.deletion_protection
auto_pause = var.auto_pause
max_capacity = var.max_capacity
min_capacity = var.min_capacity
seconds_until_auto_pause = var.seconds_until_auto_pause
api_server_sg = module.api-sg.ecs_security_group.id
vpc_id = module.networks.vpc_id
}
Conclusion
한달 반 정도 시간을 들여 AWS Copilot, AWS CDK, AWS CDK for Terraform을 시도해보고 결국 Terraform으로 선회하였다. 나에겐 Terraform을 사용함으로써 Live state를 Remote backend로 관리할 수 있다는 장점이 매우 컸다. Terraform 자체를 공부하는 데에는 많은 어려움이 없었지만 첫단추를 잘못 끼우는 실수를 여러번 하여 인프라를 여러번 지워가며 설정하게 되었다. 인프라를 최종적으로 배포하는데 오래걸린 이유는 결국 AWS자체에 대한 이해가 부족한 것이 좀 있었다. Blue-Green 배포전략부터 이해했어야 했고, 보안그룹 설정에 대한 이해도 매우 필요했다. 오류가 발생하면 그 메시지로 여러가지 검색해 가면서 Role과 Policy설정하는 것도 있었지만, 오류 메시지가 없는 경우 매우 파악하기 힘들었다. 이때는 AWS CLI에 대한 예제를 찾아보면 해결되는 일들이 많았다.
이로써 AWS에 조금 더 가까워진 느낌이다. 이 후의 숙제가 더 있다. 메트릭 수집에 대한 것과 프론트엔드 인프라 배포를 진행하고, Auth 컨테이너를 붙일지 API에 모놀리식으로 직접 만들어 사용할지 더 고민해봐야겠다.
본 예제에 대한 전체 코드는 terraform-ecs-codedeploy-blue-green에서 확인 가능하다. PostgreSQL을 사용하며 Prisma ORM을 사용해 만든 동작하는 API Github 리포에 연결하여 terraform apply 한 명령으로 동작하는 엔드포인트를 얻을 수 있다. (buildspec.yml의 수정은 좀 필요함)
